Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: ANSI B16.34
*Conforms to the applicable requirements of API 600
Test Standard: API 598

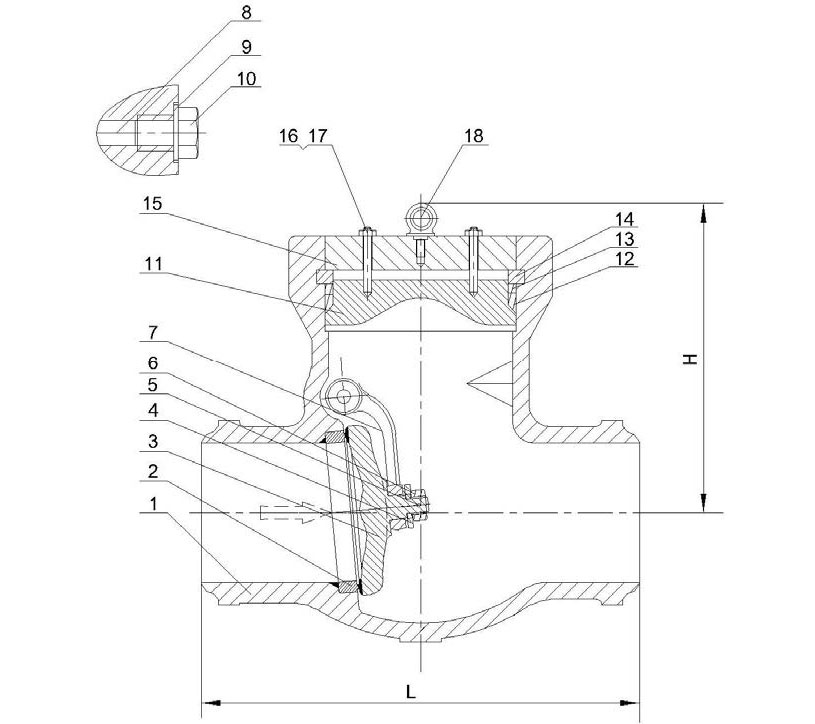

| MATERIAL LIST | ||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) |
| 1 | Body | A 216-WCB |
| 2 | Seat Ring | A 105/CoCr-A HF |
| Seat Ring Surface | CoCr-A HF | |
| 3 | Disc | A 216–WCB |
| Disc Seating Surface | CoCr-A HF | |
| 4 | Disc Washer | Carbon Steel |
| 5 | Disc Nut Pin | A 276 Type 410 |
| 6 | Disc Nut | A 194 Gr. 2H |
| 7 | Hinge | A 216-WCB |
| 8 | Hinge Pin | A 182 Gr. F6 |
| 9 | Washer | Brass |
| 10 | Plug | Carbon Steel |
| 11 | Cover | A 105 |
| 12 | Sealing Ring | A 276 Type 304 |
| 13 | Pressure Ring | A 276 Type 410 |
| 14 | Segment Ring | A 276 Type 410 |
| 15 | Cover Clamp | A 216-WCB |
| 16 | Cover Clamp Bolt | A 193 Gr. B7 |
| 17 | Nut | A 194 Gr. 2H |
| 18 | Eyebolt | A 181 |
| DIMENSIONS AND WEIGHTS | |||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L (BW) | In | 8.50 | 10.00 | 12.00 | 16.00 | 22.00 | 28.00 | 34.00 | 39.00 | 42.00 | 47.00 |
| Mm | 216 | 254 | 304 | 406 | 559 | 711 | 864 | 991 | 1067 | 1194 | |
| H | In | 9.68 | 10.43 | 11.81 | 13.46 | 17.25 | 21.03 | 22.75 | 25.50 | 27.56 | 30.31 |
| Mm | 245 | 265 | 300 | 342 | 438 | 534 | 578 | 648 | 700 | 770 | |
| WT | KG | 26 | 36 | 50 | 80 | 290 | 490 | 750 | 1110 | 1415 | 1605 |
| LB | 57.3 | 79.3 | 110.2 | 176.3 | 639.1 | 1080.0 | 1653.0 | 2446.5 | 1542.8 | 3537.4 | |
