Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: ANSI B16.34
*Conforms to the applicable requirements of API 600
Test Standard: API 598

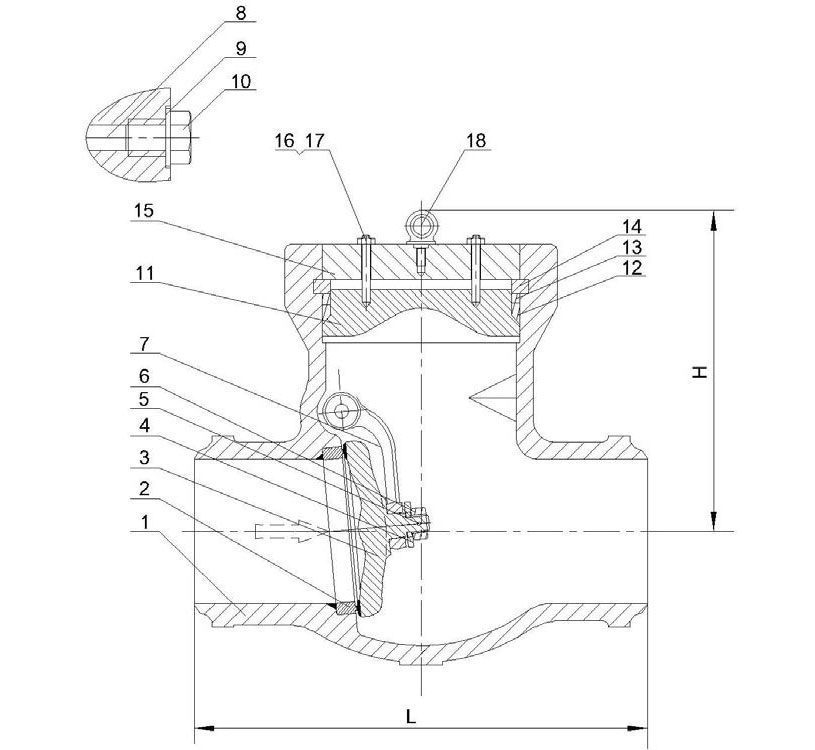

| MATERIAL LIST | ||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) |
| 1 | Body | A 216-WCB |
| 2 | Seat Ring | A 105/CoCr-A HF |
| Seat Ring Surface | CoCr-A HF | |
| 3 | Disc | A 216–WCB |
| Disc Seating Surface | CoCr-A HF | |
| 4 | Disc Washer | Carbon Steel |
| 5 | Disc Nut Pin | A 276 Type 410 |
| 6 | Disc Nut | A 194 Gr. 2H |
| 7 | Hinge | A 216-WCB |
| 8 | Hinge Pin | A 182 Gr. F6 |
| 9 | Washer | Brass |
| 10 | Plug | Carbon Steel |
| 11 | Cover | A 105 |
| 12 | Sealing Ring | A 276 Type 304 |
| 13 | Pressure Ring | A 276 Type 410 |
| 14 | Segment Ring | A 276 Type 410 |
| 15 | Cover Clamp | A 216-WCB |
| 16 | Cover Clamp Bolt | A 193 Gr. B7 |
| 17 | Nut | A 194 Gr. 2H |
| 18 | Eyebolt | A 181 |
| DIMENSIONS AND WEIGHTS | |||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L (BW) | In | 8.50 | 10.00 | 12.00 | 14.00 | 20.00 | 26.00 | 31.00 | 36.00 | 39.00 | 43.00 |
| Mm | 216 | 254 | 304 | 355 | 508 | 660 | 787 | 914 | 991 | 1092 | |
| H | In | 8.50 | 9.68 | 11.50 | 12.50 | 15.75 | 18.25 | 20.36 | 23.31 | 25.18 | 27.56 |
| Mm | 215 | 245 | 292 | 318 | 400 | 464 | 517 | 592 | 640 | 700 | |
| WT | KG | 25 | 35 | 46 | 68 | 170 | 460 | 700 | 1020 | 1220 | 1350 |
| LB | 55.1 | 77.1 | 101.4 | 150.0 | 374.7 | 1013.8 | 1542.8 | 2248.1 | 2688.9 | 2975.4 |
