Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: ANSI B16.34
Test Standard: API 598
*Conforms to the applicable requirements of API 600

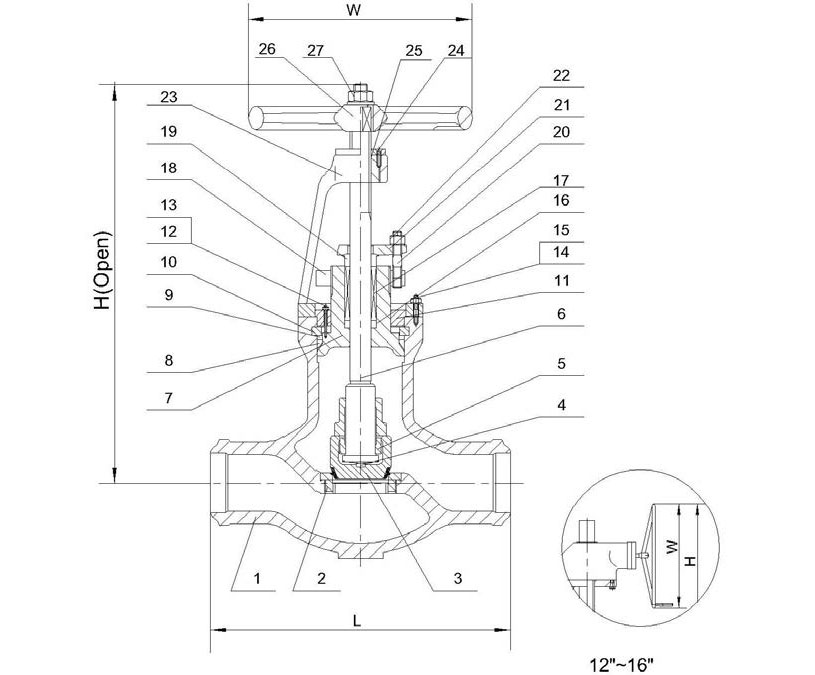

| MATERIAL LIST | ||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) |
| 1 | Body | A 216 Gr. WCB |
| 2 | Seat Ring | A 105/CoCr-A HF |
| Seat Ring Surface | CoCr-A HF | |
| 3 | Disc | A 105 |
| Disc Seating Surface | CoCr-A HF | |
| 4 | Disc Thrust Plate | A 276 Type 410 |
| 5 | Disc Nut | A 276 Type 410 |
| 6 | Stem | A 182 Gr. F6 |
| 7 | Stuffing Box | A 216 Gr. WCB |
| 8 | Sealing Ring | A 276 Type 304 |
| 9 | Pressure Ring | A 276 Type 420 |
| 10 | Segment Ring | A 276 Type 410 |
| 11 | Support Plate | A 216 Gr. WCB |
| 12 | Box-Plate Bolt | A 193 Gr. B7 |
| 13 | Box-Plate Nut | A 194 Gr. 2H |
| 14 | Bonnet Bolts | A 193 Gr. B7 |
| 15 | Bonnet Nuts | A 194 Gr. 2H |
| 16 | Lantern | A 276 Type 410 |
| 17 | Packing | Braided Graphite & Die Formed Graphite |
| 18 | Gland Flange Seat | A 182 Gr. F6 |
| 19 | Gland | A 276 Type 410 |
| 20 | Gland Eye Bolt | A 193 Gr. B7 |
| 21 | Gland Flange | A 216 Gr. WCB |
| 22 | Gland Eyebolt Nut | A 194 Gr. 2H |
| 23 | Bonnet | A 216 Gr. WCB |
| 24 | Screw | Carbon Steel A 193 Gr. B7 |
| 25 | Yoke Sleeve | A 439 Gr. D2 |
| 26 | Handwheel | Malleable Iron |
| 27 | Handwheel Nut | Carbon Steel |
| 28 | Gear Protector | Carbon Steel |
| DIMENSIONS AND WEIGHTS | ||||||||||
| Size | NPS | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L (RF) | In | 14.50 | 18.50 | 21.50 | 27.80 | 32.80 | 39.00 | 44.50 | 49.50 | 55.00 |
| Mm | 368 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1397 | |
| L (BW) | In | 14.50 | 18.50 | 21.50 | 27.80 | 32.80 | 39.00 | 44.50 | 49.50 | 55.00 |
| Mm | 368 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1397 | |
| H | In | 24.00 | 39.09 | 34.68 | 43.94 | 47.48 | 55.00 | 63.78 | 71.97 | 85.00 |
| Mm | 306 | 739 | 881 | 1116 | 1206 | 1397 | 1620 | 1828 | 2159 | |
| W | In | 13.78 | 17.72 | 19.69 | 25.20 | 29.13 | 31.50 | 35.43 | 24.02 | 31.89 |
| Mm | 350 | 450 | 500 | 640 | 740 | 800 | 900 | 610 | 810 | |
| WT | KG | 87 | 250 | 435 | 540 | 970 | 1520 | 1960 | 2700 | 3400 |
| LB | 192 | 551 | 959 | 1190 | 2138 | 3351 | 4321 | 5952 | 7496 |
