Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: ANSI B16.34
Test Standard: API 598
*Conforms to the applicable requirements of API 600
| MATERIAL LIST | ||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) |
| 1 | Body | A 216 Gr. WCB |
| 2 | Seat Ring | A 105/CoCr-A HF |
| Seat Ring Surface | CoCr-A HF | |
| 3 | Disc | A 105 |
| Disc Seating Surface | CoCr-A HF | |
| 4 | Disc Thrust Plate | A 276 Type 410 |
| 5 | Disc Nut | A 276 Type 410 |
| 6 | Stem | A 182 Gr. F6 |
| 7 | Stuffing Box | A 216 Gr. WCB |
| 8 | Sealing Ring | A 276 Type 304 |
| 9 | Pressure Ring | A 276 Type 420 |
| 10 | Segment Ring | A 276 Type 410 |
| 11 | Support Plate | A 216 Gr. WCB |
| 12 | Box-Plate Bolt | A 193 Gr. B7 |
| 13 | Box-Plate Nut | A 194 Gr. 2H |
| 14 | Bonnet Bolts | A 193 Gr. B7 |
| 15 | Bonnet Nuts | A 194 Gr. 2H |
| 16 | Lantern | A 276 Type 410 |
| 17 | Packing | Braided Graphite & Die Formed Graphite |
| 18 | Gland Flange Seat | A 182 Gr. F6 |
| 19 | Gland | A 276 Type 410 |
| 20 | Gland Eye Bolt | A 193 Gr. B7 |
| 21 | Gland Flange | A 216 Gr. WCB |
| 22 | Gland Eyebolt Nut | A 194 Gr. 2H |
| 23 | Bonnet | A 216 Gr. WCB |
| 24 | Screw | Carbon Steel A 193 Gr. B7 |
| 25 | Yoke Sleeve | A 439 Gr. D2 |
| 26 | Handwheel | Malleable Iron |
| 27 | Handwheel Nut | Carbon Steel |
| 28 | Gear Protector | Carbon Steel |

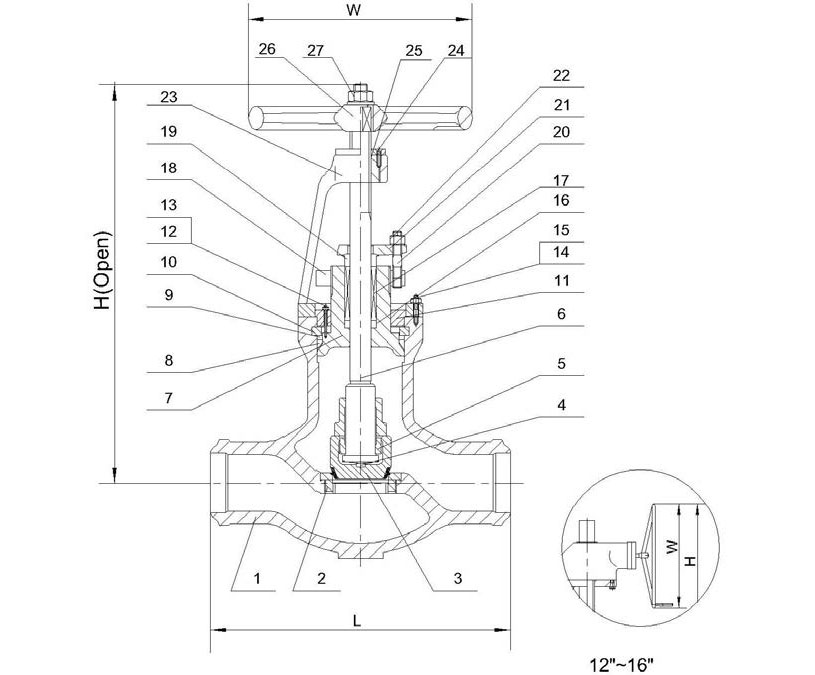

| NPS | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | |
| L (RF) | In | 14.50 | 12.00 | 14.00 | 20.00 | 26.00 | 31.00 | 36.00 | 39.00 | 43.00 |
| Mm | 368 | 304 | 355 | 508 | 660 | 787 | 914 | 991 | 1092 | |
| L (BW) | In | 14.50 | 12.00 | 14.00 | 20.00 | 26.00 | 31.00 | 36.00 | 39.00 | 43.00 |
| Mm | 368 | 304 | 355 | 508 | 660 | 787 | 914 | 991 | 1092 | |
| ØB | In | 1.69 | 2.13 | 2.63 | 3.44 | 5.18 | 6.81 | 8.50 | 10.13 | 11.18 |
| Mm | 43 | 54 | 67 | 87 | 132 | 173 | 216 | 257 | 284 | |
| H | In | 23.62 | 26.97 | 32.99 | 43.98 | 55.98 | 61.73 | 78.15 | 71.97 | 85.00 |
| Mm | 600 | 685 | 838 | 1117 | 1422 | 1568 | 1985 | 1828 | 2159 | |
| W | In | 13.78 | 17.72 | 19.69 | 28.35 | 31.50 | 33.46 | 35.43 | 24.02 | 24.02 |
| Mm | 350 | 450 | 500 | 720 | 800 | 850 | 900 | 610 | 610 | |
| WT | KG | 87 | 105 | 195 | 455 | 800 | 1250 | 1568 | 1750 | 2200 |
| LB | 192 | 231 | 430 | 1003 | 1764 | 2756 | 3457 | 3858 | 4850 |
