Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: ASME B16.34
Test Standard: API 598

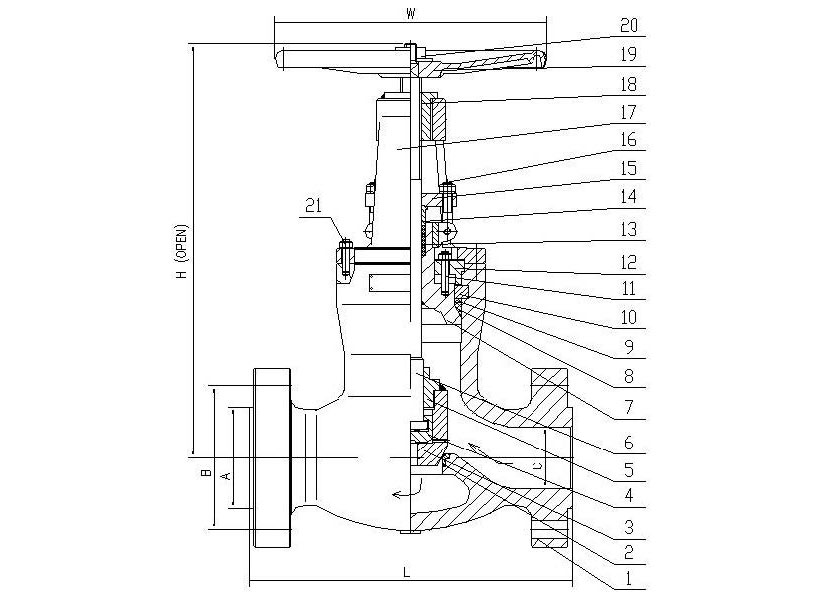

| MATERIAL LIST | |||||||||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) | |||||||
| A 216 | A 352 | A 217 | A 351 | ||||||
| WCB | LCC | WC6 | C5 | CF8M | |||||
| 1 | Body | A 216-WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |||
| 2 | Seat | 13CR, HF (CoCr-A), 316, 304, or Monel | A 276-316M | ||||||
| 3 | Disc | 13CR, 316, 304, 17-4PH, or Monel | |||||||
| 4 | Nut | 13CR, 316, 304, 17-4PH, or Monel | |||||||
| 5 | Stem | 13Cr | A 276-316M | ||||||
| 6 | Stuffing Box | A 216-WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |||
| 7 | Seal Rings | Flexible Graphite | |||||||
| 8 | Gasket | A 105 | A 276-316 | ||||||
| 9 | Ring | 13Cr | A 276-316 | ||||||
| 10 | Bolts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | |||
| Nuts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | ||||
| 11 | Disc | A 105 | A 276-316 | ||||||
| 12 | Packing | Flexible Graphite | 13 | Gland | 13Cr | A 276-316 | |||
| 14 | Gland Flange | A 216 – WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |||
| 15 | Gland Eye Bolts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |||
| 16 | Yoke | A 216-WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |||
| 17 | Handwheel | Malleable Iron | 18 | Handwheel | Malleable Iron | ||||
| 19 | Handwheel Nut | A 194-2H | A 194-8 | ||||||
| 20 | Bonnet Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |||
| Bonnet Nuts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | ||||
| DIMENSIONS AND WEIGHTS | ||||
| Size | NPS | 4 | 6 | 8 |
| L (RF) | In | 17.00 | 22.00 | 26.00 |
| Mm | 432 | 559 | 660 | |
| L (RTJ) | In | 17.13 | 22.13 | 26.13 |
| Mm | 435 | 562 | 664 | |
| L (BW) | In | 17.00 | 22.00 | 26.00 |
| Mm | 432 | 559 | 660 | |
| A | In | 6.18 | 8.50 | 10.62 |
| Mm | 157 | 216 | 270 | |
| B | In | 8.50 | 11.50 | 13.75 |
| Mm | 216 | 292 | 349 | |
| C | In | 4 | 6 | 8 |
| Mm | 102 | 152.4 | 203.2 | |
| H | In | 30.70 | 35.82 | 45.28 |
| Mm | 780 | 910 | 1150 | |
| W | In | 13.78 | 19.68 | 28.35 |
| Mm | 350 | 500 | 720 | |
| WT | KG | |||
| LB | ||||
