Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: ANSI B16.34
*Conforms to the applicable requirements of API 600
Test Standard: API 598

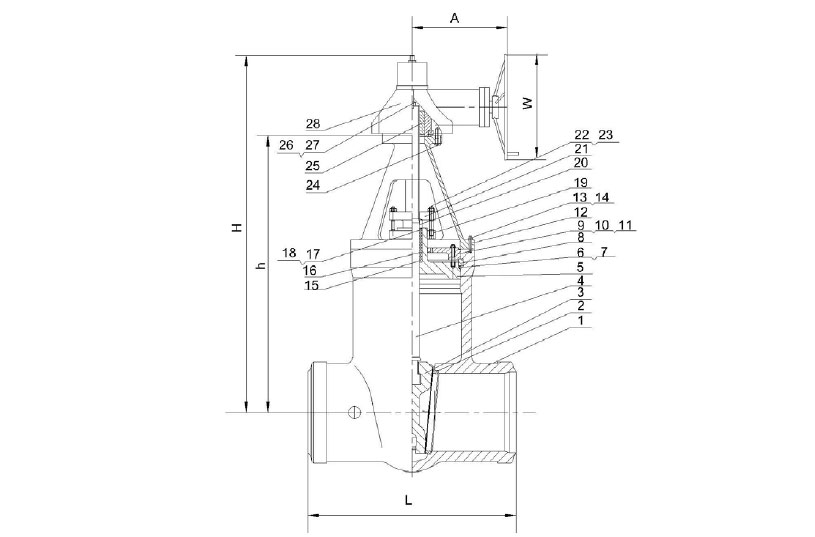

| MATERIAL LIST | ||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) |
| 1 | Body | A 216-WCB |
| 2 | Seat Ring | A 105/CoCr-A HF |
| Seat Ring Surface | CoCr-A HF | |
| 3 | Gate | A 216–WCB |
| Gate Seating Surface | CoCr-A HF | |
| 4 | Stem | A182 Gr. F6 |
| 5 | Stuffing Box | A 216-WCB |
| 6 | Sealing Ring | A 276 Type 316 |
| 7 | Pressure Ring | A 276 Type 420 |
| 8 | Segment Ring | A 182 Gr. F6 |
| 9 | Support Plate | A 216-WCB |
| 10 | Box-Plate Bolt | A 193 Gr. B7 |
| 11 | Box-Plate Nut | A 194 Gr. 2H |
| 12 | Yoke | A 216-WCB |
| 13 | Box-Plate Bolt | A 193 Gr. B7 |
| 14 | Box-Plate Nut | A 194 Gr. 2H |
| 15 | Packing Plate | A 276 Gr. 410 |
| 16 | Lantern | A 276 Gr. 410 |
| 17 | Wiper Ring | Braided Graphite |
| 18 | Packing | Flexible Graphite |
| 19 | Gland Flange Seat | A 216-WCB |
| 20 | Gland Follower | A 276 Gr. 410 |
| 21 | Gland Flange | Carbon Steel |
| 22 | Gland Eyebolt | A 193 Gr. B7 |
| 23 | Gland Eyebolt Nuts | A 194 Gr. 2H |
| 24 | Yoke-Gear Stud | Carbon Steel A 193 Gr. B7 |
| 25 | Stem Nut | A 439 Gr. D2 |
| 26 | Stem Indicator | A 276 Gr. 410 |
| 27 | Stem Indicator Nut | Carbon Steel |
| 28 | Gear Protector | Carbon Steel |
| DIMENSIONS AND WEIGHTS | |||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L BW |
In | 8.50 | 10.00 | 12.00 | 14.00 | 20.00 | 26.00 | 31.00 | 36.00 | 39.00 | 43.00 |
| Mm | 216 | 254 | 304 | 355 | 508 | 660 | 787 | 914 | 991 | 1092 | |
| A | In | HW | HW | HW | HW | HW | HW | HW | HW | 12.20 | 15.75 |
| Mm | HW | HW | HW | HW | HW | HW | HW | HW | 310 | 400 | |
| B Port |
In | 1.87 | 2.25 | 2.87 | 3.87 | 5.35 | 6.75 | 8.44 | 10.12 | 11.25 | 12.75 |
| Mm | 48 | 58 | 73 | 99 | 136 | 172 | 215 | 258 | 286 | 324 | |
| H | In | 17.53 | 20.68 | 26.00 | 26.25 | 36.53 | 49.68 | 60.25 | 68.13 | 72.50 | 79.13 |
| Mm | 445 | 525 | 660 | 666 | 928 | 1261 | 1530 | 1730 | 1842 | 2010 | |
| W | In | 11.81 | 11.81 | 13.75 | 15.75 | 23.62 | 18.13 | 18.13 | 18.13 | 23.62 | 23.62 |
| Mm | 300 | 300 | 350 | 400 | 600 | 460 | 460 | 460 | 600 | 600 | |
| WT | KG | 50 | 74 | 90 | 110 | 195 | 505 | 745 | 1060 | 1410 | 1960 |
| LB | 110.2 | 163.1 | 198.5 | 242.5 | 429.9 | 1113.3 | 1642.5 | 2336.9 | 3108.5 | 4321.0 | |
