Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Basic Design: API 600
Test Standard: API 598

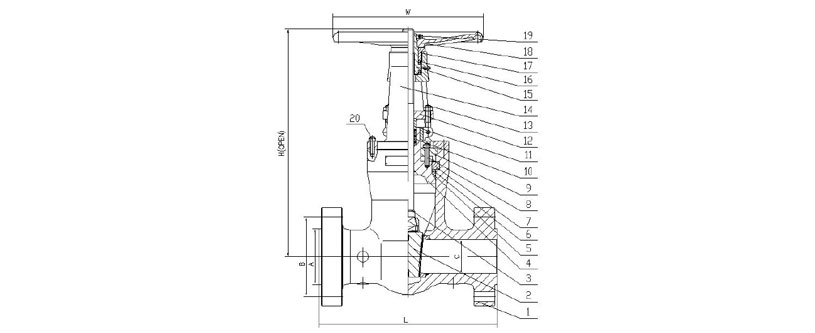

| MATERIAL ASTM Specification (Specs – Grades/Types) | |||||||
| WCB | LCC | WC6 | C5 | CF8M | |||
| 1 | Body | A 216-WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |
| 2 | Gate | A 216–WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |
| Gate Seating Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||||
| 3 | Stem | 13CR, 316, 304, 17-4PH, or Monel | |||||
| 4 | Packing Chamber | A 105 | |||||
| 5 | Seal Ring | 304/Flexible Graphite | |||||
| 6 | Gasket | A 105 | |||||
| 7 | Ring | 13Cr | |||||
| 8 | Bolts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |
| Nuts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | ||
| 9 | Bonnet Ring | A 105 | |||||
| 10 | Packing | Flexible Graphite/Graphitic Yarn | |||||
| 11 | Gland | 13Cr | A 276 Type 316 | ||||
| 12 | Gland Flange | A 216–WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |
| 13 | Gland Eye Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |
| 14 | Yoke | A 216–WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |
| 15 | Yoke Sleeve | A 216–WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M | |
| 16 | Bearing | A 439 Gr. D2C | |||||
| 17 | Retaining Nut | Carbon Steel | |||||
| 18 | Handwheel | Malleable Iron | |||||
| 19 | Handwheel Nut | A 194-2H | A 194-8 | ||||
| 20 | Bonnet Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |
| Bonnet Nut | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | ||
| DIMENSIONS AND WEIGHTS | ||||
| Size | NPS | 4 | 6 | 8 |
| L (RF) | In | 17.00 | 22.00 | 26.00 |
| Mm | 432 | 559 | 660 | |
| L (RTJ) | In | 17.12 | 22.12 | 26.12 |
| Mm | 191 | 203 | 724 | |
| L (BW) | In | 12.00 | 18.00 | 23.00 |
| Mm | 304.8 | 457 | 584.2 | |
| A | In | 6.18 | 8.50 | 10.63 |
| Mm | 157 | 216 | 270 | |
| B | In | 8.50 | 11.50 | 13.60 |
| Mm | 216 | 292 | 345 | |
| C | In | 3.87 | 5.25 | 7.50 |
| Mm | 98 | 132 | 190 | |
| H | In | 34.00 | 42.50 | 52.25 |
| Mm | 860 | 1080 | 1325 | |
| W | In | 16 | 24 | 35 |
| Mm | 400 | 600 | 900 | |
| WT | KG | 110 | 195 | 505 |
| LB | 242.5 | 429.9 | 1113.3 |
