STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 900
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

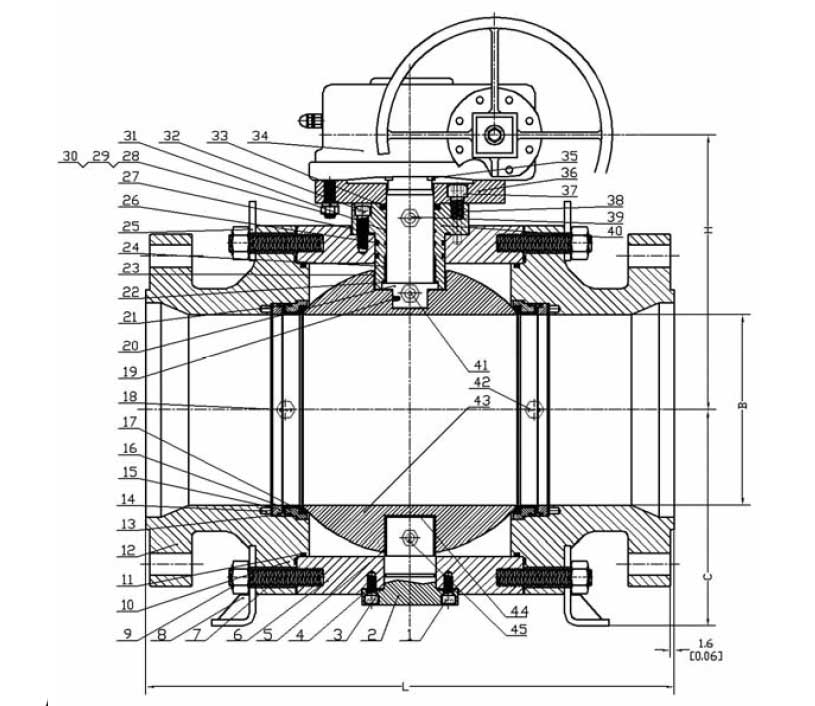

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LF2/304 |
| 1 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 2 | Bottom Stem | 4140/ENP | A182 Gr. F316 | A350 Gr. LF2 |
| 3 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 4 | O-Ring | Viton | Viton | Viton |
| 5 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 6 | Body | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 7 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 8 | Support Foot | ASTM A570 | ASTM A570 | ASTM A570 |
| 9 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 10 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 11 | O-Ring | Viton | Viton | Viton |
| 12 | End Piece | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 13 | Seal | Graphite | Graphite | Graphite |
| 14 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 15 | Pressure Plate | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 16 | Seat Holder | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 17 | Seat | PTFE | PTFE | PTFE |
| 18 | Grease Fitting | Carbon Steel/ZN | 316SS | Carbon Steel/Zn |
| 19 | Anti-Static Device | SS316 | SS316 | SS316 |
| 20 | Stem | 17-4PH | 17-4PH | 17-4PH |
| 21 | O-Ring | Viton | Viton | Viton |
| 22 | Gasket | PTFE | PTFE | PTFE |
| 23 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 24 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 25 | Lifting Eye | Carbon Steel | 316 SST | Carbon Steel |
| 26 | O-Ring | Viton | Viton | Viton |
| 27 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 28 | Bolt | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 29 | Spring Washer | AISI 1066 | AISI 316 | ASI 1066 |
| 30 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 31 | O-Ring | Viton | Viton | Viton |
| 32 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 33 | Packing | Graphite | Graphite | Graphite |
| 34 | Gear | |||
| 35 | Key | AISI 1045 | AISI 1045 | AISI 1045 |
| 36 | Mounting Plate | AISI 1025 | AISI 1025 | AISI 1025 |
| 37 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 38 | Straight Pin | 304 | 316 | 316 |
| 39 | Grease Fitting | Carbon Steel/ZN | 316SS | Carbon Steel/Zn |
| 40 | Stem Box | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 41 | Relief Valve | Carbon Steel/ZN | 316SS | Carbon Steel/Zn |
| 42 | Check Valve | Carbon Steel/ZN | 316SS | Carbon Steel/Zn |
| 43 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 44 | Gasket | PTFE | PTFE | PTFE |
| 45 | Relief Valve | Carbon Steel/ZN | 316SS | Carbon Steel/Zn |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| DIMENSIONS | ||||||
| SIZE | L | B | C | H | Weight Lbs/Kg | |
| 2 | Inch | 17.75 | 1.5 | 4.63 | 7 | 181 |
| 2 | mm | 451 | 38 | 117.5 | 178 | 82 |
| 3 | Inch | 22.75 | 1.65 | 4.63 | 7.5 | 277.2 |
| 3 | mm | 578 | 42 | 117.5 | 190 | 126 |
| 4 | Inch | 26.5 | 2.44 | 6 | 9.03 | 580.8 |
| 4 | mm | 673 | 62 | 152.5 | 229 | 264 |
| 6 | Inch | 36 | 3.43 | 7 | 12.06 | 974.5 |
| 6 | mm | 914 | 87 | 178 | 306 | 443 |
| 8 | Inch | 40.25 | 5.16 | 9.5 | 13.87 | 2490.5 |
| 8 | mm | 1022 | 131 | 241.5 | 352 | 1132 |
| 10 | Inch | 50 | 7.05 | 14 | 17.38 | 3810.5 |
| 10 | mm | 1270 | 179 | 355 | 442 | 1732 |
| 12 | Inch | 56 | 8.78 | 17.25 | 21 | 6960.8 |
| 12 | mm | 1422 | 223 | 438 | 533 | 3164 |
