STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 2500
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10
| MATERIAL SPECIFICATIONS | ||||

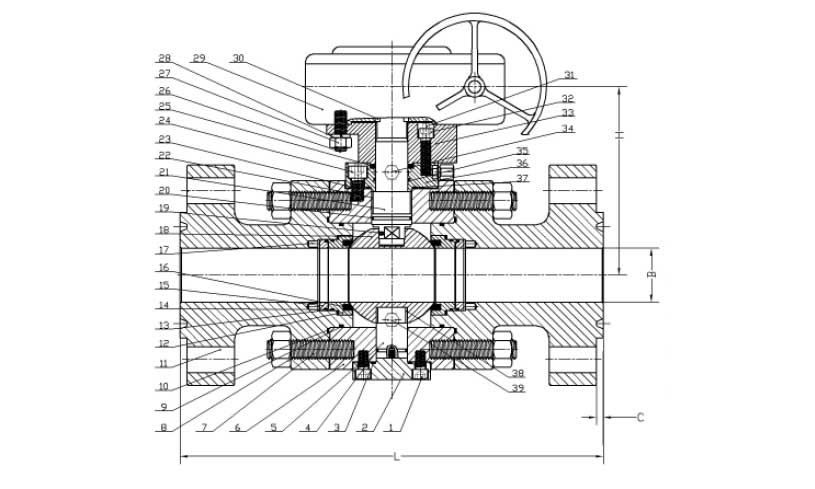

| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LCC/304 |
| 1 | Screw | A193 Gr. B7M | A193 Gr. B8 | A193 Gr. B7M |
| 2 | Spiral Wound Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 3 | Cap | A105 | A182 Gr. F316 | A105 |
| 4 | Bottom Stem | A276 Gr. F304 | A276 Gr. F316 | A276 Gr. F304 |
| 5 | O-RING | Viton | Viton | Viton |
| 6 | Body | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 7 | Drain Plug | Carbon Steel | 316 SS | Carbon Steel |
| 8 | Body Nut | A194 Gr. 2HM | A194 Gr. 8M | A194 Gr. 4 |
| 9 | Body Stud | A193 Gr. B7M | A193 Gr. B8 | A193 Gr. L7M |
| 10 | Spiral Wound Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 11 | O-RING | Viton | Viton | Viton |
| 12 | Seal Ring | Graphite | Graphite | Graphite |
| 13 | Seat | Nylon | Nylon | Nylon |
| 14 | Seat Holder | A276 Gr. F304 | A276 Gr. F316 | A276 Gr. F304 |
| 15 | Ball | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 16 | Bearing | 316/P.T.F.E. | 316/P.T.F.E. | 316/P.T.F.E. |
| 17 | Anti-Static Device | 316 SS | 316 SS | 316 SS |
| 18 | Pressure Ring | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 19 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 20 | Retainer | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 21 | Stem | A276 Gr. F304 | A276 Gr. F316 | A276 Gr. F304 |
| 22 | O-RING | Viton | Viton | Viton |
| 23 | Bearing | 316/P.T.F.E. | 316/P.T.F.E. | 316/P.T.F.E. |
| 24 | Washer | A276 Gr. F304 | A276 Gr. F316 | A276 Gr. F304 |
| 25 | Spiral Wound Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 26 | Packing Chamber | A105 | A182 Gr. F316 | A105 |
| 27 | Screw | A193 Gr. B7M | A193 Gr. B8 | A193 Gr. B7M |
| 28 | Packing | Graphite | Graphite | Graphite |
| 29 | Gland | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 30 | Gland Flange | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 31 | Stop Plate | A570 Gr. A | A570 Gr. A | A570 Gr. A |
| 32 | Washer | AISI 1066 | AISI 1066 | AISI 1066 |
| 33 | Lever | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 34 | Screw | A193 Gr. B7M | A193 Gr. B8 | A193 Gr. B7M |
| 35 | Bearing | 316 SS/PTFE | 316 SS/PTFE | 316 SS/PTFE |
| 36 | Bearing | 316/P.T.F.E. | 316/P.T.F.E. | 316/P.T.F.E. |
| 37 | O-RING | Viton | Viton | Viton |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| DIMENSIONS | |||||||
| SIZE | L | B | C | H | Weight Lbs/Kg | ||
| 2 | Inch | 17.87 | 1.65 | 0.31 | 7.16 | ||
| 2 | mm | 454 | 42 | 7.92 | 182 | ||
| 3 | Inch | 23 | 2.44 | 0.37 | 9.37 | ||
| 3 | mm | 584 | 62 | 9.52 | 238 | ||
| 4 | Inch | 26.89 | 3.43 | 0.44 | 12 | ||
| 4 | mm | 683 | 87 | 11.1 | 304.5 | ||
| 6 | Inch | 36.5 | 5.16 | 0.5 | 13.94 | ||
| 6 | mm | 927 | 131 | 12.7 | 354 | ||
