STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 1500
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

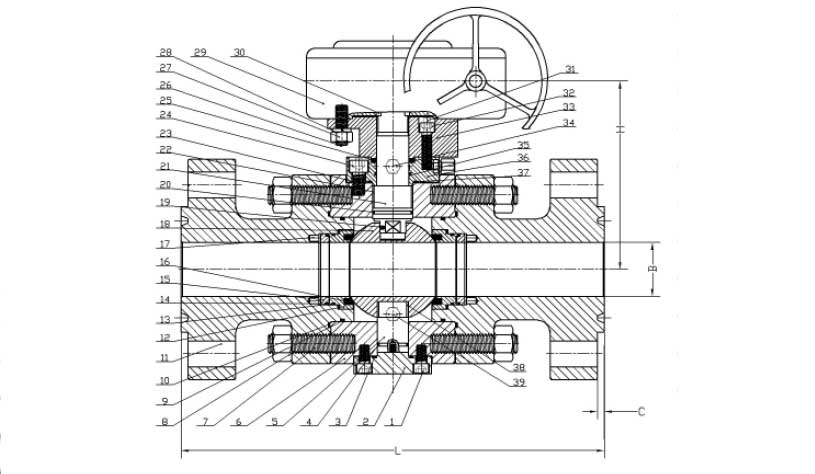

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LF2/304 |
| 1 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 2 | Bottom Cover | A105N/ENP | A182 Gr. F316 | A350 Gr. LF2 |
| 3 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 4 | O-Ring | Viton | Viton | Viton |
| 5 | Body | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 6 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 4 |
| 7 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 8 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 9 | O-Ring | Viton | Viton | Viton |
| 10 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 11 | O-Ring | Viton | Viton | Viton |
| 12 | Drain Valve | Carbon Steel | 316 SST | Carbon Steel |
| 13 | Grease Fitting | Carbon Steel | 316 SST | Carbon Steel |
| 14 | Vent Valve | Carbon Steel | 316 SST | Carbon Steel |
| 15 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 16 | Seat | PTFE | PTE | PTFE |
| 17 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 18 | Pressure Plate | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 19 | Seal Ring | Graphite | Graphite | Graphite |
| 20 | Seat Holder | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 21 | Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 22 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 23 | Washer | PTFE | PTE | PTFE |
| 24 | Lifting Eye | Carbon Steel | 316 SST | Carbon Steel |
| 25 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 26 | Gasket | 304/Graphite | 316/Graphite | 316/Graphite |
| 27 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 28 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 29 | Bolt | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 30 | Spring Washer | AISI 1066 | AISI 316 | ASI 1066 |
| 31 | Gear Operator | |||
| 32 | Key | 1045 | 1045 | 1045 |
| 33 | Stop Pad | A105N | A182 Gr. F316 | A105N |
| 34 | Straight Pin | 304 | 316 | 316 |
| 35 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 36 | Packing | Graphite | Graphite | Graphite |
| 37 | Grease Fitting | 316 SST | 316 SST | 316 SST |
| 38 | O-Ring | Viton | Viton | Viton |
| 39 | O-Ring | Viton | Viton | Viton |
| 40 | Stem Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 41 | Anti-Static Device | SS316 | SS316 | SS316 |
| 42 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 43 | Support Foot | ASTM A570 | ASTM A570 | ASTM A570 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| DIMENSIONS | ||||||
| SIZE | L | B | C | H | Weight Lbs/Kg | |
| 2 | Inch | 14.56 | 1.93 | 0.31 | 6.93 | |
| 2 | mm | 370 | 49 | 7.92 | 176 | |
| 3 | Inch | 18.63 | 3 | 0.31 | 8.86 | |
| 3 | mm | 473 | 76 | 7.92 | 225 | |
| 4 | Inch | 21.63 | 3.94 | 0.31 | 9.56 | |
| 4 | mm | 549 | 100 | 7.92 | 243 | |
| 6 | Inch | 28 | 5.75 | 0.37 | 12.36 | |
| 6 | mm | 711 | 146 | 9.52 | 314 | |
| 8 | Inch | 33.12 | 7.56 | 0.43 | 14.96 | |
| 8 | mm | 841 | 192 | 11.13 | 380 | |
| 10 | Inch | 39.37 | 9.41 | 0.43 | 18.12 | |
| 10 | mm | 1000 | 239 | 11.13 | 460 | |
| 12 | Inch | 45.12 | 11.3 | 0.56 | 20 | |
| 12 | mm | 1146 | 287 | 14.27 | 508 | |
| 14 | Inch | 50.25 | 12.4 | 0.63 | 23.7 | |
| 14 | mm | 1276 | 315 | 15.88 | 602 | |
| 16 | Inch | 55.38 | 14.18 | 0.68 | 24.8 | |
| 16 | mm | 1407 | 360 | 17.48 | 630 | |
