STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 900
CONNECTIONS: FLANGED – ASME B16.5, SME B16.10

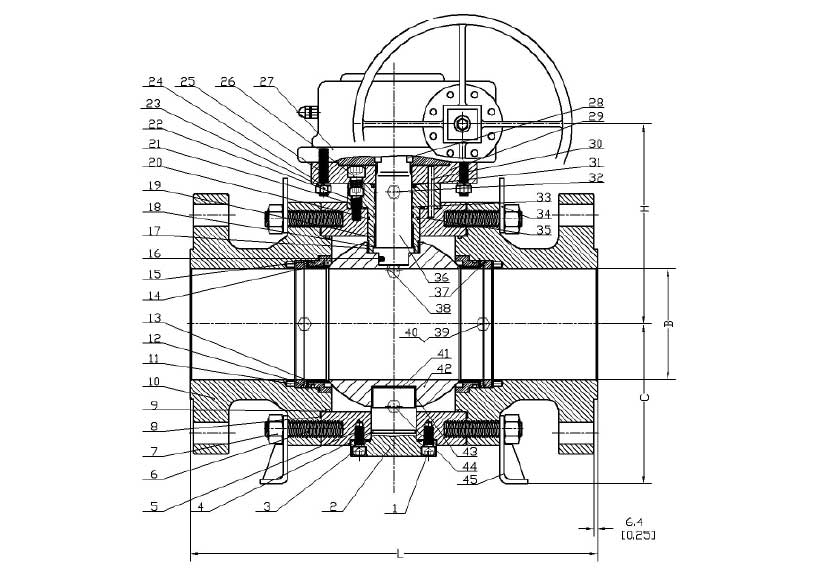

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LF2/304 |
| 1 | Screw | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. L7 |
| 2 | Lower Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 3 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 4 | O-Ring | Viton | Viton | Viton |
| 5 | Body | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 6 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 7 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 4 |
| 8 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 9 | O-Ring | Viton | Viton | Viton |
| 10 | Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 11 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 12 | Pressure Plate | A182 Gr. F304L | A182 Gr. F316 | A182 Gr. F304L |
| 13 | Seat Ring | A182 Gr. F304L | A182 Gr. F316 | A182 Gr. F304L |
| 14 | Seat | Devlon | Devlon | Devlon |
| 15 | O-Ring | Viton | Viton | Viton |
| 16 | Antistatic Device | SS316 | SS316 | SS316 |
| 17 | Bearing | 304/PTFE | 316/PTFE | 316/PTFE |
| 18 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 19 | Bearing | 304/PTFE | 316/PTFE | 304/PTFE |
| 20 | O-Ring | Viton | Viton | Viton |
| 21 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 22 | Screw | A193 Gr. B7 | A193 Gr. 8M | A193 Gr. L7M |
| 23 | Screw | A193 Gr. B7 | A193 Gr. 8M | A193 Gr. L7M |
| 24 | Lock Washer | AISI 1566 | AISI 1566 | AISI 1566 |
| 25 | Bolt | A193 Gr. B7 | A193 Gr. 8M | A193 Gr. L7M |
| 26 | Screw | A193 Gr. B7 | A193 Gr. 8M | A193 Gr. L7M |
| 27 | Gear Operator | |||
| 28 | Key | 1045 | 1045 | 1045 |
| 29 | Mounting Plate | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 30 | Stop Pin | SS304 | 316 SST | SS304 |
| 31 | Seal Ring | Graphite | Graphite | Graphite |
| 32 | Grease Fitting | 316 SST | 316 SST | 316 SST |
| 33 | O-Ring | Viton | Viton | Viton |
| 34 | Lifting Eye | Carbon Steel | 316 SST | Carbon Steel |
| 35 | Stem Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 36 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 37 | Seal Ring | Graphite | Graphite | Graphite |
| 38 | Vent Valve | SS304 | 316 SST | SS304 |
| 39 | Grease Fitting | 316 SST | 316 SST | 316 SST |
| 40 | Check Valve | SS304 | SS316 | SS316 |
| 41 | Bearing | 304/PTFE | 316/PTFE | 304/PTFE |
| 42 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 43 | Bearing | 304/PTFE | 316/PTFE | 304/PTFE |
| 44 | Vent Valve | SS304 | 316 SST | SS304 |
| 45 | Support Foot | ASTM A570 | ASTM A570 | ASTM A570 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| DIMENSIONS | ||||||
| SIZE | L | B | C | H | Weight Lbs/Kg | |
| 2 | Inch | 14.5 | 1.93 | 4.3 | 6.93 | |
| 2 | mm | 368 | 49 | 109 | 176 | |
| 3 | Inch | 15 | 3 | 4.9 | 8.11 | |
| 3 | mm | 381 | 76 | 124.5 | 206 | |
| 4 | Inch | 18 | 3.94 | 6.14 | 9.84 | |
| 4 | mm | 457 | 100 | 156 | 250 | |
| 6 | Inch | 24 | 5.91 | 7.68 | 12.36 | |
| 6 | mm | 610 | 150 | 195 | 314 | |
| 8 | Inch | 29 | 7.91 | 11.36 | 14.25 | |
| 8 | mm | 737 | 201 | 288.5 | 362 | |
| 10 | Inch | 33 | 9.84 | 14.53 | 16.25 | |
| 10 | mm | 838 | 250 | 369 | 412 | |
| 12 | Inch | 38 | 11.93 | 12.84 | 18.19 | |
| 12 | mm | 965 | 303 | 326 | 462 | |
| 14 | Inch | 40.5 | 12.68 | 13.7 | 19.68 | |
| 14 | mm | 1029 | 322 | 348 | 500 | |
| 16 | Inch | 44.5 | 14.69 | 16.54 | 23.23 | |
| 16 | mm | 1130 | 373 | 420 | 590 | |
