STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 600
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

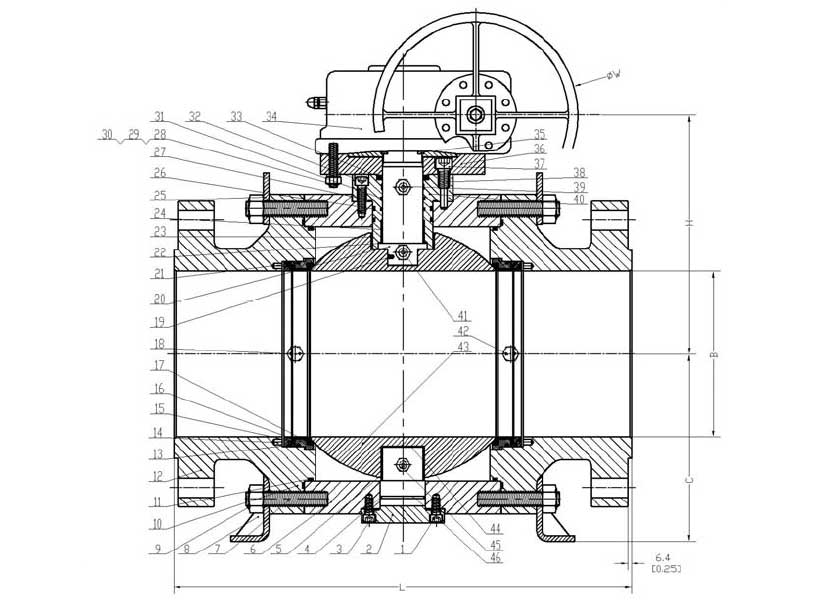

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LF2/304 |
| 1 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 2 | Bottom Cover | A105N/ENP | A182 Gr. F316 | A350 Gr. LF2 |
| 3 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 4 | O-Ring | Viton | Viton | Viton |
| 5 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 6 | Body | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 7 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 8 | Support Foot | ASTM A570 | ASTM A570 | ASTM A570 |
| 9 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 4 |
| 10 | Gasket | 304/Graphite | 316/Graphite | 316/Graphite |
| 11 | O-Ring | Viton | Viton | Viton |
| 12 | Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 13 | Seal Ring | Graphite | Graphite | Graphite |
| 14 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 15 | Pressure Plate | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 16 | Seat Holder | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 17 | Seat | PTFE | PTE | PTFE |
| 18 | Grease Fitting | Carbon Steel | 316 SST | Carbon Steel |
| 19 | Anti-Static Device | SS316 | SS316 | SS316 |
| 20 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 21 | O-Ring | Viton | Viton | Viton |
| 22 | Gasket | PTFE | PTE | PTFE |
| 23 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 24 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 25 | Lifting Eye | Carbon Steel | 316 SST | Carbon Steel |
| 26 | O-Ring | Viton | Viton | Viton |
| 27 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 28 | Bolt | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 29 | Lock Washer | AISI 1066 | AISI 316 | ASI 1066 |
| 30 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 31 | O-Ring | Viton | Viton | Viton |
| 32 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 33 | Packing | Graphite | Graphite | Graphite |
| 34 | Gear Operator | |||
| 35 | Key | 1045 | 1045 | 1045 |
| 36 | Mounting Plate | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 37 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 38 | Straight Pin | 304 | 316 | 304 |
| 39 | Grease Fitting | Carbon Steel | 316 SST | Carbon Steel |
| 40 | Stem Retainer | A105N/ENP | A182 Gr. F316 | A350 Gr. LF2 |
| 41 | Vent Valve | Carbon Steel | 316 SST | Carbon Steel |
| 42 | Check Valve | Carbon Steel | 316 SST | Carbon Steel |
| 43 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 44 | Gasket | PTFE | PTE | PTFE |
| 45 | Relief Valve | Carbon Steel | 316 SST | Carbon Steel |
| 46 | Lower Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| DIMENSIONS | ||||||
| SIZE | L | B | C | H | Weight Lbs/Kg | |
| 2 | Inch | 11.5 | 1.97 | 4.41 | 6.12 | |
| 2 | mm | 292 | 50 | 112 | 155 | |
| 3 | Inch | 14.37 | 3 | 5.71 | 8.09 | |
| 3 | mm | 356 | 76 | 145 | 205 | |
| 4 | Inch | 17 | 3.94 | 6.31 | 9.45 | |
| 4 | mm | 432 | 100 | 160 | 240 | |
| 6 | Inch | 22 | 5.91 | 7.87 | 9.41 | |
| 6 | mm | 559 | 150 | 200 | 239 | |
| 8 | Inch | 26 | 7.91 | 11.81 | 14.33 | |
| 8 | mm | 660 | 201 | 300 | 364 | |
| 10 | Inch | 31 | 9.92 | 12.8 | 16.56 | |
| 10 | mm | 787 | 252 | 325 | 420 | |
| 12 | Inch | 33 | 11.93 | 13.94 | 18.68 | |
| 12 | mm | 838 | 303 | 354 | 474 | |
| 14 | Inch | 35 | 13.26 | 17 | 19.69 | |
| 14 | mm | 889 | 337 | 432 | 500 | |
| 16 | Inch | 39 | 15.16 | 17.32 | 21.03 | |
| 16 | mm | 991 | 385 | 440 | 534 | |
