STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 300
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

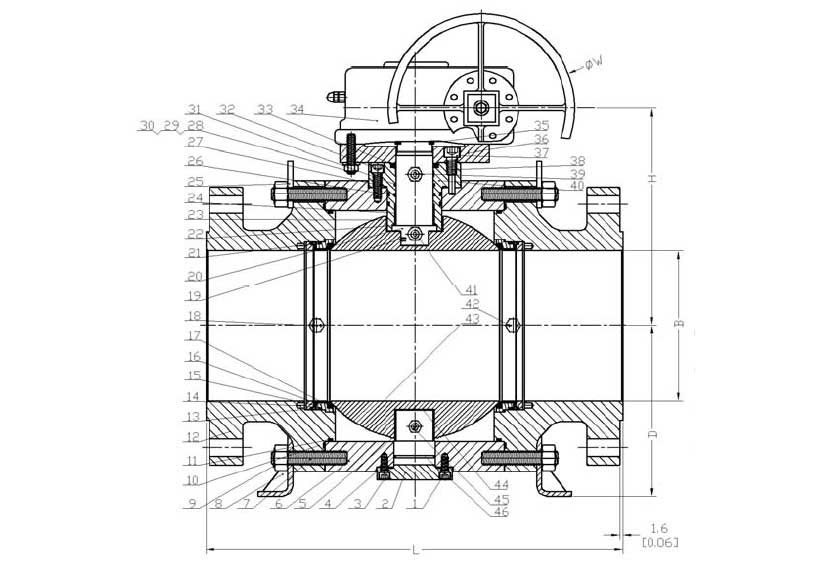

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LF2/304 |
| 1 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 2 | Bottom Cover | A105N/ENP | A182 Gr. F316 | A350 Gr. LF2 |
| 3 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 4 | O-Ring | Viton | Viton | Viton |
| 5 | Body | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 6 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 4 |
| 7 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 8 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 9 | O-Ring | Viton | Viton | Viton |
| 10 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 11 | O-Ring | Viton | Viton | Viton |
| 12 | Drain Valve | Carbon Steel | 316 SST | Carbon Steel |
| 13 | Grease Fitting | Carbon Steel | 316 SST | Carbon Steel |
| 14 | Vent Valve | Carbon Steel | 316 SST | Carbon Steel |
| 15 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 16 | Seat | PTFE | PTE | PTFE |
| 17 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 18 | Pressure Plate | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 19 | Seal Ring | Graphite | Graphite | Graphite |
| 20 | Seat Holder | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 21 | Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 22 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 23 | Washer | PTFE | PTE | PTFE |
| 24 | Lifting Eye | Carbon Steel | 316 SST | Carbon Steel |
| 25 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 26 | Gasket | 304/Graphite | 316/Graphite | 316/Graphite |
| 27 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 28 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 29 | Bolt | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 30 | Spring Washer | AISI 1066 | AISI 316 | ASI 1066 |
| 31 | Gear Operator | |||
| 32 | Key | 1045 | 1045 | 1045 |
| 33 | Stop Pad | A105N | A182 Gr. F316 | A105N |
| 34 | Straight Pin | 304 | 316 | 304 |
| 35 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 36 | Packing | Graphite | Graphite | Graphite |
| 37 | Grease Fitting | 316 SST | 316 SST | 316 SST |
| 38 | O-Ring | Viton | Viton | Viton |
| 39 | O-Ring | Viton | Viton | Viton |
| 40 | Stem Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 41 | Anti-Static Device | SS316 | SS316 | SS316 |
| 42 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 43 | Support Foot | ASTM A570 | ASTM A570 | ASTM A570 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| DIMENSIONS | |||||||
| SIZE | L | B | D | H | W | Weight Lbs/Kg | |
| 2 | Inch | 8.5 | 1.97 | 4.33 | 7.5 | 10.62 | 70.5 |
| 2 | mm | 216 | 50 | 110 | 190 | 270 | 32 |
| 3 | Inch | 11.12 | 2.97 | 5.1 | 7.9 | 11.8 | 114.6 |
| 3 | mm | 282 | 75 | 130 | 200 | 300 | 52 |
| 4 | Inch | 12 | 3.94 | 5.5 | 10.19 | 16.5 | 213.8 |
| 4 | mm | 305 | 100 | 140 | 259 | 420 | 97 |
| 6 | Inch | 15.87 | 5.94 | 7.4 | 13.75 | GO | 463 |
| 6 | mm | 403 | 150.9 | 188 | 348 | GO | 210 |
| 8 | Inch | 18 | 7.94 | 10.24 | 17 | GO | 710 |
| 8 | mm | 502 | 201.7 | 260 | 432 | GO | 322 |
| 10 | Inch | 22.38 | 19.93 | 11.35 | 23.15 | GO | 1179.5 |
| 10 | mm | 568 | 252 | 288 | 588 | GO | 535 |
| 12 | Inch | 25.5 | 12 | 4.58 | 27 | GO | 1708.6 |
| 12 | mm | 648 | 305 | 370 | 685 | GO | 775 |
