STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 150
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

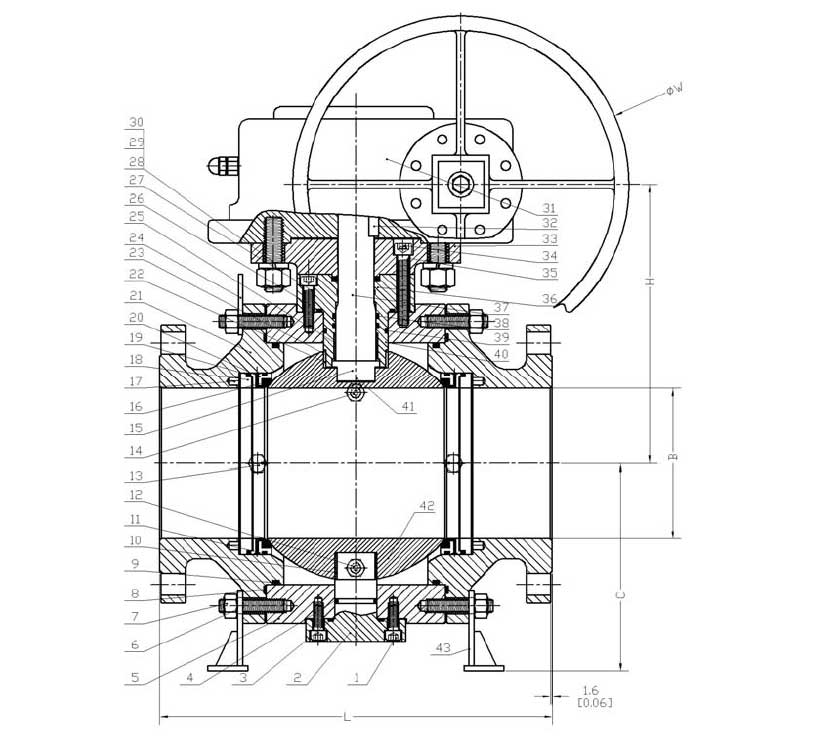

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LF2/304 |
| 1 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 2 | Bottom Cover | A105N/ENP | A182 Gr. F316 | A350 Gr. LF2 |
| 3 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 4 | O-Ring | Viton | Viton | Viton |
| 5 | Body | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 6 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 4 |
| 7 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 8 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 9 | O-Ring | Viton | Viton | Viton |
| 10 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 11 | O-Ring | Viton | Viton | Viton |
| 12 | Drain Valve | Carbon Steel | 316 SST | Carbon Steel |
| 13 | Grease Fitting | Carbon Steel | 316 SST | Carbon Steel |
| 14 | Vent Valve | Carbon Steel | 316 SST | Carbon Steel |
| 15 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 16 | Seat | PTFE | PTE | PTFE |
| 17 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 18 | Pressure Plate | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 19 | Seal Ring | Graphite | Graphite | Graphite |
| 20 | Seat Holder | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 21 | Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 22 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 23 | Washer | PTFE | PTE | PTFE |
| 24 | Lifting Eye | Carbon Steel | 316 SST | Carbon Steel |
| 25 | Bearing | 316/PTFE | 316/PTFE | 316/PTFE |
| 26 | Gasket | 304/Graphite | 316/Graphite | 316/Graphite |
| 27 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 28 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 29 | Bolt | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 30 | Spring Washer | AISI 1066 | AISI 316 | ASI 1066 |
| 31 | Gear Operator | |||
| 32 | Key | 1045 | 1045 | 1045 |
| 33 | Stop Pad | A105N | A182 Gr. F316 | A105N |
| 34 | Straight Pin | 304 | 316 | 316 |
| 35 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 36 | Packing | Graphite | Graphite | Graphite |
| 37 | Grease Fitting | 316 SST | 316 SST | 316 SST |
| 38 | O-Ring | Viton | Viton | Viton |
| 39 | O-Ring | Viton | Viton | Viton |
| 40 | Stem Retainer | A105N | A182 Gr. F316 | A350 Gr. LF2 |
| 41 | Anti-Static Device | SS316 | SS316 | SS316 |
| 42 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 43 | Support Foot | ASTM A570 | ASTM A570 | ASTM A570 |
| DIMENSIONS | |||||||
| SIZE | L | B | C | H | W | Weight Lbs/Kg | |
| 2 | Inch | 7 | 1.97 | 3.94 | 7.09 | 10.63 | 66.1 |
| 2 | mm | 178 | 50 | 100 | 180 | 270 | 30 |
| 3 | Inch | 8 | 3 | 5.1 | 7.9 | 10.63 | 110.2 |
| 3 | mm | 203 | 76 | 130 | 200 | 270 | 50 |
| 4 | Inch | 9 | 3.94 | 6.06 | 9.96 | 17.72 | 216 |
| 4 | mm | 229 | 100.1 | 154 | 253 | 450 | 98 |
| 6 | Inch | 15.5 | 5.91 | 8 | 20.55 | GO | 447.5 |
| 6 | mm | 394 | 150 | 203.3 | 522 | GO | 203 |
| 8 | Inch | 18 | 7.94 | 9.1 | 13.4 | GO | 637.1 |
| 8 | mm | 457 | 201 | 230 | 340 | GO | 289 |
| 10 | Inch | 21 | 9.92 | 12.02 | 28.92 | GO | 992.1 |
| 10 | mm | 533 | 252 | 305.3 | 734.6 | GO | 450 |
| 12 | Inch | 24 | 11.93 | 13.99 | 24 | GO | 1296.3 |
| 12 | mm | 610 | 303 | 355.3 | 609.4 | GO | 588 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
