STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 600
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10
| DIMENSIONS | ||||||
| SIZE | L | B | H | W | Weight Lbs/Kg |
|
| 3 | Inch | 14.00 | 1.97 | 5.68 | 18.00 | |
| 3 | mm | 356.0 | 500.0 | 144.0 | 457.0 | |
| 4 | Inch | 17.00 | 3.00 | 6.78 | 16.50 | |
| 4 | mm | 432.0 | 76.0 | 172.0 | 417.0 | |
| 6 | Inch | 22.00 | 4.02 | 9.12 | 21.00 | |
| 6 | mm | 559.0 | 102.0 | 231.0 | 534.0 | |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.

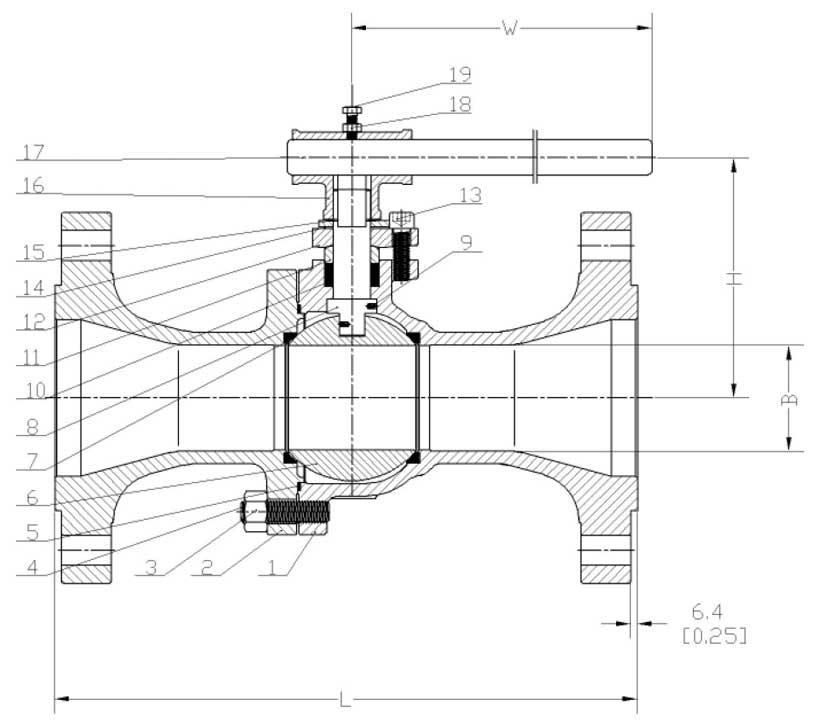

| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LCC/304 |
| 1 | Body | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 2 | Body Nut | A194 Gr. 2H | A194 Gr. 8A | A194 Gr. 4 |
| 3 | Body Bolt | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. L7M |
| 4 | Retainer | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 5 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 6 | Ball | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 7 | Seat | PTFE | PTFE | PTFE |
| 8 | Stem | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 9 | Anti Static Device | 304SS | 304SS | 304SS |
| 10 | Packing | Graphite | Graphite | Graphite |
| 11 | Gland | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 12 | Gland Plate | A216 Gr. WCB | A 351 Gr. CF8M | A216 Gr. WCB |
| 13 | Bolt | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. B7 |
| 14 | Stop Plate | A570 Gr. 45 | 316SS | A570 Gr. 45 |
| 15 | Washer | 304SS | 316SS | 304SS |
| 16 | Handle Adaptor | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 17 | Handle | A570 | A570 | A570 |
| 18 | Nut | A194 Gr. 2H | A194 Gr. 8A | A194 Gr. 2H |
| 19 | Bolt | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. B7 |
