STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 300
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

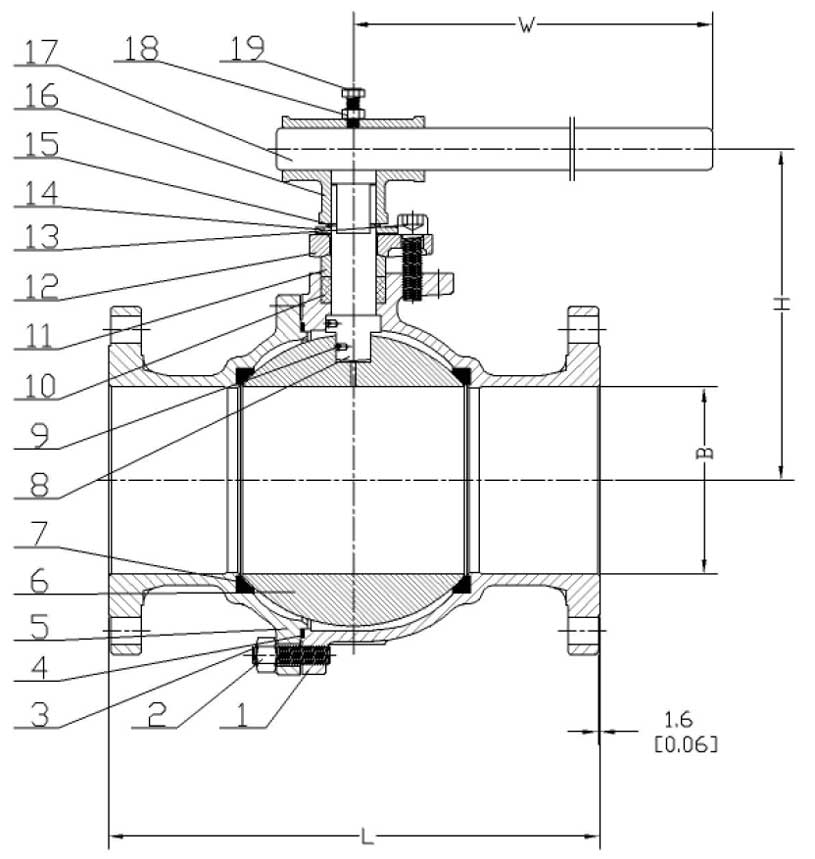

| DIMENSIONS | ||||||
| SIZE | L | B | H | W | Weight Lbs/Kg |
|
| 2 | Inch | 8.50 | 1.97 | 5.43 | 15.75 | 33.10 |
| 2 | mm | 216 | 50 | 138 | 400 | 15 |
| 3 | Inch | 11.12 | 3.00 | 6.89 | 17.72 | 77.2 |
| 3 | mm | 282 | 76 | 175 | 450 | 35 |
| 4 | Inch | 12.00 | 3.94 | 7.87 | 17.72 | 123.5 |
| 4 | mm | 305 | 100 | 200 | 500 | 56 |
| 6 | Inch | 15.88 | 5.98 | 9.06 | 19.68 | 220.5 |
| 6 | mm | 403 | 152 | 230 | 300 | 100 |
| 8 | Inch | 19.75 | 8.00 | 11.42 | 15.75 | 352.7 |
| 8 | mm | 502 | 203 | 290 | 400 | 160 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LCC/304 |
| 1 | Body | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 2 | Body Nut | A194 Gr. 2H | A194 Gr. 8A | A194 Gr.4 |
| 3 | Body Bolt | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. L7M |
| 4 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 5 | Retainer | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 6 | Ball | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 7 | Seat | PTFE | PTFE | PTFE |
| 8 | Stem | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 9 | Anti Static Device | 304SS | 304SS | 304SS |
| 10 | Packing | Graphite | Graphite | Graphite |
| 11 | Gland | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 12 | Gland Plate | A216 Gr. WCB | A 351 Gr. CF8M | A216 Gr. WCB |
| 13 | Bolt | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. B7 |
| 14 | Stop Plate | A570 Gr. 45 | 316SS | A570 Gr. 45 |
| 15 | Washer | 304SS | 316SS | 304SS |
| 16 | Handle Adaptor | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 17 | Handle | A570 | A570 | A570 |
| 18 | Nut | A194 Gr. 2H | A194 Gr. 8A | A194 Gr. 2H |
| 19 | Bolt | A193 Gr. B7 | A193 Gr. B8M | A193 Gr. B7 |
