STANDARDS DESIGN: API 6D, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 300
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

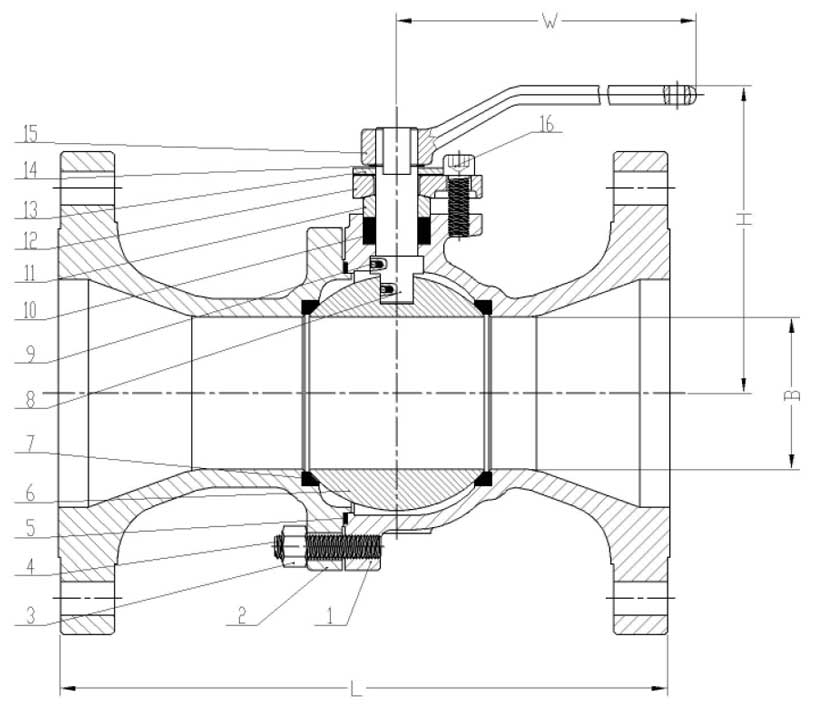

| DIMENSIONS | ||||||
| SIZE | L | B | H | W | Weight Lbs/Kg |
|
| 2 | Inch | 8.50 | 1.50 | 4.30 | 9.25 | 32.0 |
| 2 | mm | 216.0 | 38.0 | 109.0 | 234.0 | 14.5 |
| 3 | Inch | 11.00 | 1.97 | 5.25 | 10.62 | 66.1 |
| 3 | mm | 282.0 | 50.0 | 132.5 | 270.0 | 30 |
| 4 | Inch | 12.00 | 2.99 | 6.62 | 11.41 | 121.3 |
| 4 | mm | 305.0 | 76.0 | 168.0 | 290.0 | 55 |
| 6 | Inch | 15.75 | 3.94 | 8.00 | 16.41 | 205.0 |
| 6 | mm | 400.0 | 100.0 | 203.0 | 417.0 | 93 |
| 8 | Inch | 19.75 | 5.91 | 12.37 | 29.00 | 260.1 |
| 8 | mm | 502.0 | 150.0 | 313.0 | 738.0 | 118 |
| 10 | Inch | 22.36 | 7.87 | N/A | GO | 440.9 |
| 10 | mm | 568.0 | 200.0 | N/A | GO | 200 |
| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LCC/304 |
| 1 | Body | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 2 | Retainer | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 3 | Body Nut | A194 Gr. 2H | A194 Gr. 8A | A194 Gr. 4 |
| 4 | Body Stud | A193 Gr. B7 | A320 Gr. B8M | A320 Gr. L7M |
| 5 | Gasket | 304/Graphite | 316/Graphite | 304/Graphite |
| 6 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 7 | Seat | P.T.F.E. | P.T.F.E. | P.T.F.E. |
| 8 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 9 | Anti-Static Device | A182 Gr. F316 | A182 Gr. F316 | A182 Gr. F304 |
| 10 | Packing | Graphite | Graphite | Graphite |
| 11 | Gland | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 12 | Gland Plate | A216 Gr. WCB | A 351 Gr. CF8M | A216 Gr. WCB |
| 13 | Stop Plate | A570 | A570 | A570 |
| 14 | Washer | AISI SS304 | AISI SS304 | AISI SS304 |
| 15 | Handle | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 16 | Screw | A193 Gr. B7 | A320 Gr. B8M | A320 Gr. L7 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
