PRESSURE CLASS: FLANGED – 150
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10
STANDARDS DESIGN: API 6D, API 608, API 607/API 6FA, ASME B16.34
TESTING: API 598

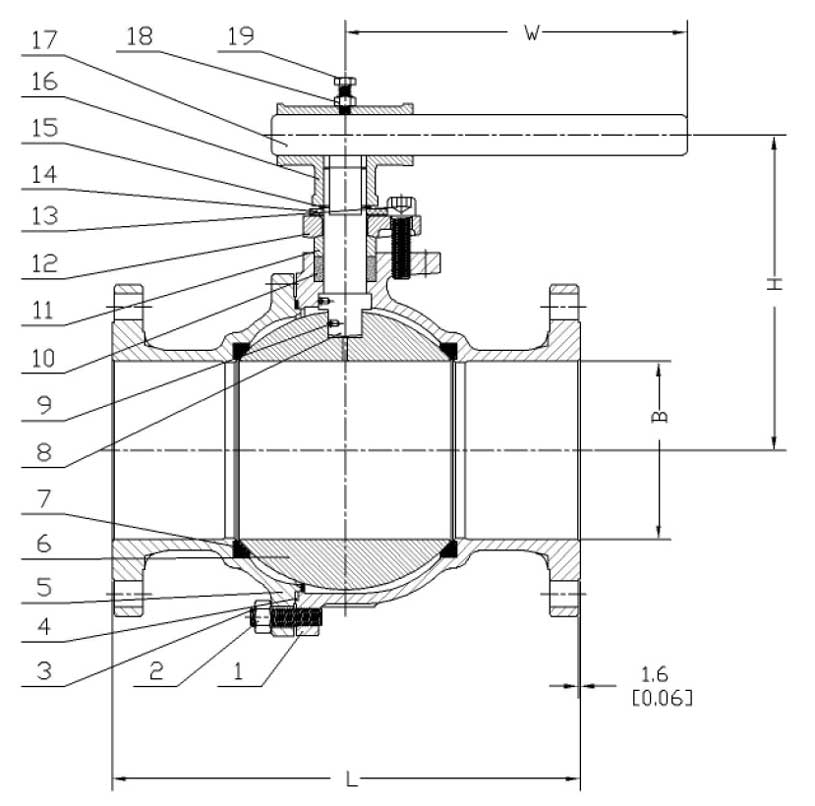

| DIMENSIONS | ||||||
| SIZE | L | B | H | W | Weight Lbs/Kg |
|
| 2 | Inch | 7.00 | 1.97 | 4.5 | 9.18 | 20.9 |
| 2 | mm | 178 | 50 | 114.3 | 233.2 | 9.5 |
| 3 | Inch | 8.00 | 3.00 | 6.40 | 10.50 | 41.9 |
| 3 | mm | 203 | 76 | 162.5 | 266.7 | 19 |
| 4 | Inch | 9.00 | 3.94 | 7.87 | 8.87 | 72.8 |
| 4 | mm | 229 | 100.1 | 200 | 225 | 33 |
| 6 | Inch | 15.50 | 5.94 | 10.44 | 31.50 | 172.0 |
| 6 | mm | 394 | 150.9 | 265.4 | 800 | 78 |
| 8 | Inch | 18.00 | 7.94 | 13.62 | GO | 286.6 |
| 8 | mm | 457 | 201.7 | 345 | GO | 130 |
| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LCC/304 |
| 1 | Body | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 2 | Body Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 4 |
| 3 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. L7M |
| 4 | Body Stud | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 5 | Retainer | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 6 | Ball | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 7 | Seat | P.T.F.E. | P.T.F.E. | P.T.F.E. |
| 8 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 9 | Anti-Static Device | 304 SST | 316 SST | 304 SST |
| 10 | Packing | Graphite | Graphite | Graphite |
| 11 | Gland | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 12 | Gland Plate | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. WCB |
| 13 | Screw | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
| 14 | Stop Plate | ASTM A570 | ASTM A570 | ASTM A570 |
| 15 | Washer | 304 SST | 316 SST | 304 SST |
| 16 | Handle Adaptor | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 17 | Handle | ASTM A570 | ASTM A570 | ASTM A570 |
| 18 | Nut | A194 Gr. 2H | A194 Gr. 8M | A194 Gr. 2H |
| 19 | Bolt | A193 Gr. B7 | A193 Gr. B8 | A193 Gr. B7 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
