DESIGN: API 6D, API 607/API 6FA, ASME B16.34
TESTING: API 598
PRESSURE CLASS: FLANGED – 150
CONNECTIONS: FLANGED – ASME B16.5, ASME B16.10

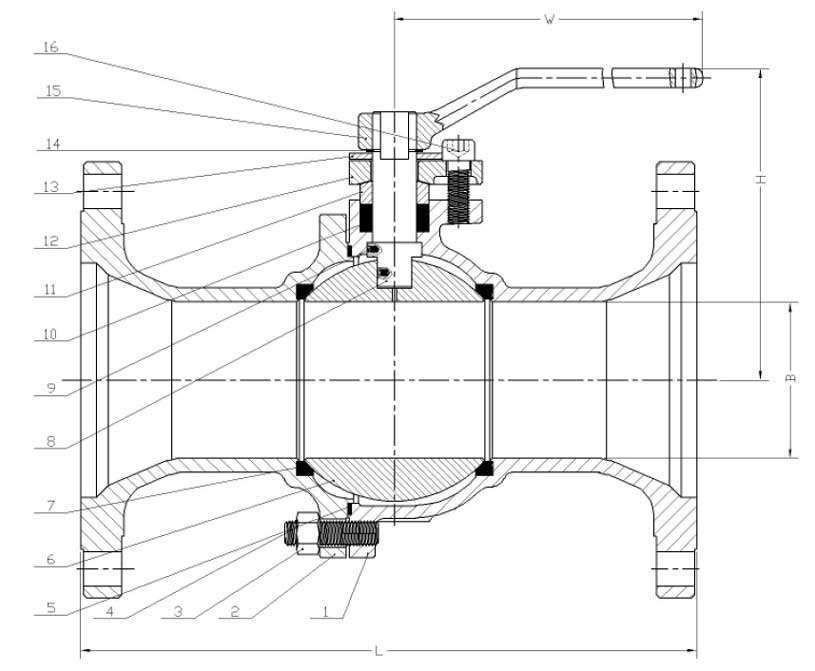

| DIMENSIONS | ||||||
| SIZE | L | B | H | W | Weight Lbs/Kg |
|
| 2 | Inch | 7.00 | 1.5 | 5.20 | 7.50 | 20.9 |
| 2 | mm | 178 | 38 | 132 | 190.0 | 9.5 |
| 3 | Inch | 8.00 | 1.97 | 4.28 | 9.25 | 41.9 |
| 3 | mm | 203 | 50.0 | 108.7 | 234 | 19 |
| 4 | Inch | 9.00 | 3.00 | 6.89 | 6.40 | 72.8 |
| 4 | mm | 229 | 76.0 | 175 | 162.5 | 33 |
| 6 | Inch | 15.50 | 3.94 | 7.85 | 8.75 | 127.9 |
| 6 | mm | 394 | 100.0 | 199.5 | 222.0 | 58 |
| 8 | Inch | 18.00 | 5.91 | 12.37 | 29.0 | 205.0 |
| 8 | mm | 457.0 | 150.0 | 314 | 738.0 | 93 |
| 10 | Inch | 21.00 | 7.87 | N/A | GO | 352.7 |
| 10 | mm | 533 | 200 | N/A | GO | 160 |
| MATERIAL SPECIFICATIONS | ||||
| NO. | Part Name | Carbon Steel/304 | Stainless Steel/316 | LCC/304 |
| 1 | Body | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 2 | Retainer | A216 Gr. WCB | A 351 Gr. CF8M | A351 Gr. LCC |
| 3 | Body Nut | A194 Gr. 2H | A194 Gr. 8A | A194 Gr. 4 |
| 4 | Body Stud | A193 Gr. B7 | A320 Gr. B8M | A320 Gr. L7M |
| 5 | Gasket | 304/Graphite | 316/Graphite | 316/Graphite |
| 6 | Ball | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 7 | Seat | P.T.F.E. | P.T.F.E. | P.T.F.E. |
| 8 | Stem | A182 Gr. F304 | A182 Gr. F316 | A182 Gr. F304 |
| 9 | Anti-Static Device | A182 Gr. F316 | A182 Gr. F316 | A182 Gr. F304 |
| 10 | Packing | Graphite | Graphite | Graphite |
| 11 | Gland | A276 Gr. 304 | A276 Gr. 316 | A276 Gr. 304 |
| 12 | Gland Plate | A216 Gr. WCB | A 351 Gr. CF8M | A216 Gr. WCB |
| 13 | Stop Plate | A570 | A570 | A570 |
| 14 | Washer | AISI SS304 | AISI SS304 | AISI SS304 |
| 15 | Handle | A216 Gr. WCB | A216 Gr. WCB | A216 Gr. WCB |
| 16 | Screw | A193 Gr. B7 | A320 Gr. B8M | A320 Gr. L7 |
NOTE: COMPONENTS MAY CHANGE ACCORDING TO VALVE SIZE. CONTACT BERIC FOR CERTIFIED DRAWINGS.
ADDITIONAL VALVE BODY AND TRIM MATERIALS AVAILABLE.
