Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5, 26” ≥ MSS SP-44, or API 605
Basic Design: B16.34 & BS1873
Test Standard: API 598

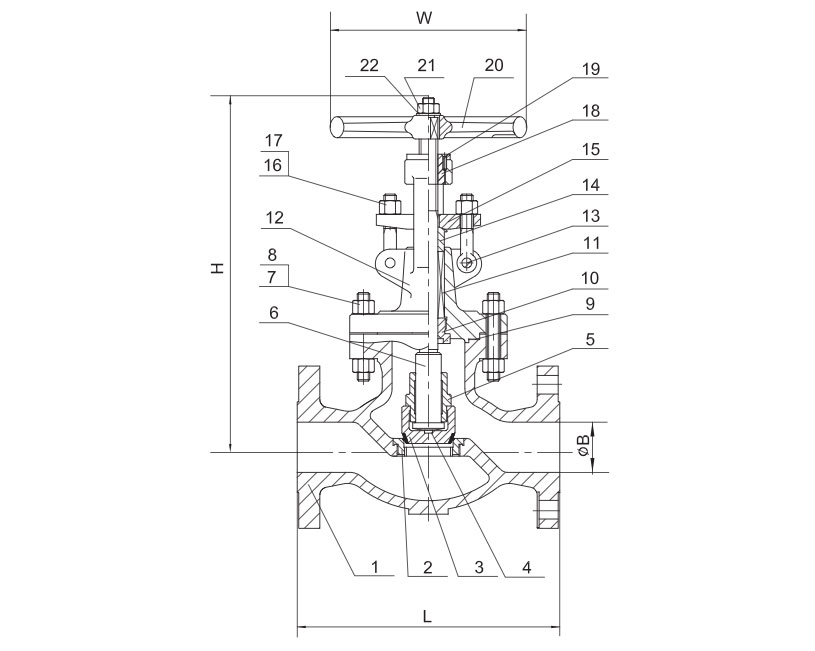

| MATERIAL LIST | ||||||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) | ||||
| NO. | Part Name | A 216 | A 352 | A 217 | A 351 | |
| WCB | LCC | WC6 | C5 | CF8M | ||
| 1 | Body | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 2 | Seat Ring | A 105, LF2, 316, or 304 | ||||
| 2 | Seat Ring Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||
| 3 | Disc | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 3 | Disc Seating Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||
| 4 | Disc Thrust Plate | 13CR, 316, OR 304 | ||||
| 5 | Disc Nut | 13CR, 316, OR 304 | ||||
| 6 | Stem | 13CR, 316, 304, 17-4PH, or Monel | ||||
| 7 | Bonnet Bolt Nut | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 8 | Bonnet Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 |
| 9 | Gasket | Spiral Wound 316/Graphite | ||||
| 10 | Bonnet Bushing | 13CR, 316, OR 304 | ||||
| 11 | Gland Packing | Braided Graphite & Die Formed Graphite Ring | ||||
| 12 | Bonnet | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 13 | Eye Bolt Pins | 13CR, 316, or 304 | ||||
| 14 | Gland | 13CR, 316, or 304 | ||||
| 15 | Gland Flange | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 16 | Gland Eye Bolts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 |
| 17 | Eye Bolt Nuts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 18 | Yoke Sleeve | ASTM A 439 Gr. D2C | ||||
| 19 | Screw | Carbon Steel | A 276-316 | |||
| 20 | Handwheel | Malleable Iron | ||||
| 21 | Handwheel Nut | Carbon Steel | A 276-316 | |||
| 22 | Backing Ring | Carbon Steel | A 276-316 | |||
| DIMENSIONS AND WEIGHTS | ||||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| L (RF) | In | 10.50 | 11.50 | 12.50 | 14.00 | 15.75 | 17.50 | 22.00 | 24.50 | 28.00 | 33.00 | 34.00 |
| L (RF) | Mm | 267 | 292 | 318 | 356 | 400 | 444 | 559 | 622 | 711 | 838 | 864 |
| L (RTJ) | In | 11.13 | 12.13 | 13.13 | 14.63 | 16.38 | 18.13 | 22.63 | 25.13 | 28.63 | 33.62 | 34.61 |
| L (RTJ) | Mm | 283 | 308 | 333 | 371 | 416 | 460 | 575 | 638 | 727 | 854 | 879 |
| L (BW) | In | 10.50 | 11.50 | 12.50 | 14.00 | 15.75 | 17.50 | 22.00 | 24.50 | 28.00 | 33.00 | 34.00 |
| L (BW) | Mm | 267 | 292 | 318 | 356 | 400 | 444 | 559 | 622 | 711 | 838 | 864 |
| ØB | In | 2.00 | 2.50 | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 11.37 | 15.25 |
| ØB | Mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 | 254 | 305 | 337 | 387 |
| H | In | 16.56 | 17.13 | 17.68 | 20.50 | 24.38 | 25.56 | 31.50 | 41.00 | 44.88 | 50.59 | 56.30 |
| H | Mm | 420 | 435 | 450 | 520 | 620 | 650 | 800 | 1040 | 1140 | 1285 | 1430 |
| W | In | 8 | 10 | 10 | 12 | 14 | 16 | 20 | 22 | 22 | 25 | 25 |
| W | Mm | 200 | 250 | 250 | 300 | 350 | 400 | 500 | 560 | 560 | 640 | 640 |
| WT | KG | 31.00 | 40.00 | 58.00 | 86.00 | 130.0 | 150.0 | 397.0 | 527.0 | 608.0 | 630.0 | 880.0 |
| WT | LB | 68 | 88 | 128 | 190 | 287 | 331 | 875 | 1162 | 1340 | 1389 | 1940 |
