Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5, 26” ≥ MSS SP-44, or API 605
Basic Design: API 600
Test Standard: API 598

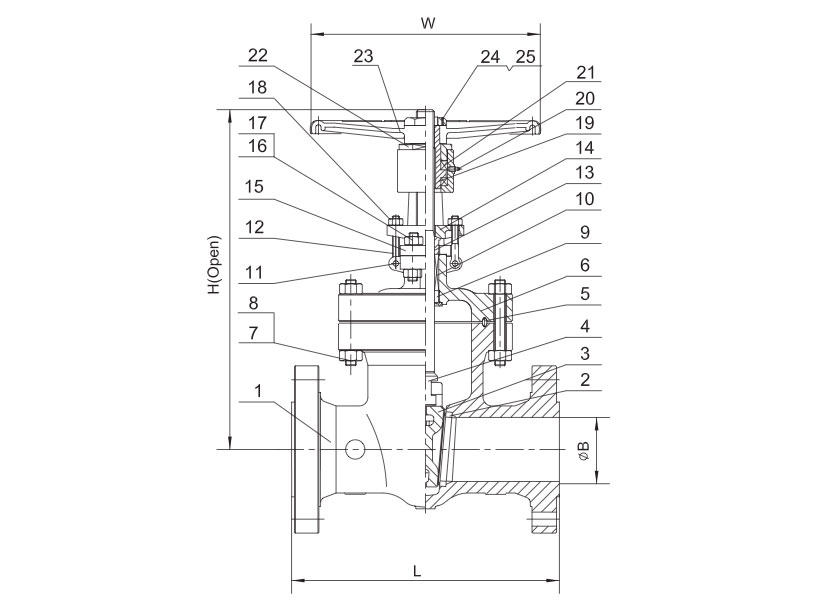

| MATERIAL LIST | ||||||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) | ||||
| NO. | Part Name | A 216 | A 352 | A 217 | A 351 | |
| WCB | LCC | WC6 | C5 | CF8M | ||
| 1 | Body | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 2 | Seat Ring | A 105, LF2, 316, or 304 | ||||
| 2 | Seat Ring Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||
| 3 | Gate | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 3 | Gate Seating Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||
| 4 | Stem | 13CR, 316, 304, 17-4PH, or Monel | ||||
| 5 | Gasket | Graphite Jacketed Stainless Steel | ||||
| 6 | Bonnet | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 7 | Bonnet Bolt Nut | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 8 | Bonnet Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 |
| 9 | Bonnet Bushing | 13CR, 316, or 304 | ||||
| 10 | Packing | Braided Graphite & Die Formed Graphite Ring | ||||
| 11 | Eye Bolt Pins | Carbon Steel | A 276 Type 316 | |||
| 12 | Gland Eye Bolts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B8 | |
| 13 | Gland | 13CR, 316, or 304 | ||||
| 14 | Gland Flange | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 15 | Yoke | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M |
| 16 | Yoke Pad Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 |
| 17 | Yoke Pad Bolt Nuts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 18 | Eye Bolt Nutt | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 19 | Yoke Sleeve | ASTM A439 Gr. D2C | ||||
| 20 | Grease Nipple | Carbon Steel | ||||
| 21 | Bearing | Carbon Steel | ||||
| 22 | Retaining Nut | Carbon Steel | 316 | |||
| 23 | Handwheel | Malleable Iron | ||||
| 24 | Screw | Carbon Steel | ||||
| 25 | Handwheel Nut | Carbon Steel | 316 | |||
| DIMENSIONS AND WEIGHTS | ||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 |
| L (RF) | In | 14.50 | 16.50 | 18.50 | 21.50 | 27.80 | 32.80 | 39.00 | 44.50 | 49.50 |
| L (RF) | mm | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 |
| L (RTJ) | In | 14.63 | 16.63 | 18.63 | 21.63 | 28.00 | 33.13 | 39.38 | 45.13 | 50.25 |
| L (RTJ) | mm | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 |
| L (BW) | In | 14.50 | 16.50 | 18.50 | 21.50 | 27.80 | 32.80 | 39.00 | 44.50 | 49.50 |
| L (BW) | mm | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 |
| ØB | In | 2.00 | 2.50 | 2.75 | 3.62 | 5.37 | 5.04 | 9.40 | 11.30 | 12.40 |
| ØB | mm | 51 | 64 | 70 | 92 | 136 | 128 | 239 | 287 | 315 |
| H | In | 24.17 | 26.81 | 26.81 | 27.64 | 37.44 | 44.76 | 56.57 | 60.12 | 78.15 |
| H | mm | 614 | 681 | 681 | 702 | 951 | 1137 | 1437 | 1527 | 1985 |
| W | In | 12 | 12 | 14 | 20 | 22 | 28 | 33 | 44 | GO |
| W | mm | 300 | 300 | 350 | 500 | 560 | 720 | 850 | 1120 | GO |
| WT | KG | 95 | 142 | 168 | 277 | 545 | 1180 | 2118 | 3244 | 3693 |
| WT | LB | 209.4 | 313.1 | 370.4 | 610.7 | 1201.5 | 2601.4 | 4669.3 | 7151.7 | 8141.6 |
