Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5, 26” ≥ MSS SP-44, or API 605
Basic Design: API 600
Test Standard: API 598

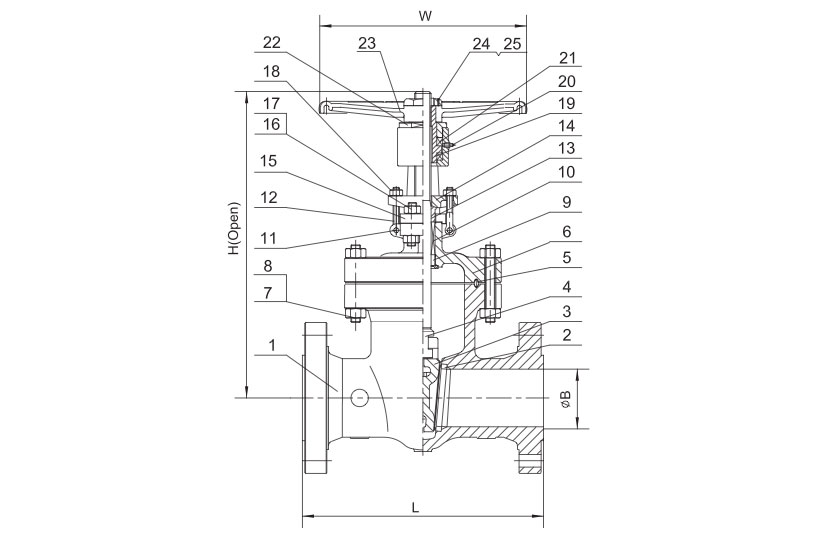

| MATERIAL LIST | |||||||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) | |||||
| NO. | Part Name | A 216 | A 352 | A 217 | A 351 | ||
| WCB | LCC | WC6 | C5 | CF8M | |||
| 1 | Body | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M | |
| 2 | Seat Ring | A 105, LF2, 316, or 304 | |||||
| 2 | Seat Ring Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | |||||
| 3 | Gate | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M | |
| 3 | Gate Seating Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | |||||
| 4 | Stem | 13CR, 316, 304, 17-4PH, or Monel | |||||
| 5 | Gasket | Graphite Jacketed Stainless Steel | |||||
| 6 | Bonnet | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M | |
| 7 | Bonnet Bolt Nut | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | |
| 8 | Bonnet Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |
| 9 | Bonnet Bushing | 13CR, 316, or 304 | |||||
| 10 | Packing | Braided Graphite & Die Formed Graphite Ring | |||||
| 11 | Eye Bolt Pins | Carbon Steel | A 276 Type 316 | ||||
| 12 | Gland Eye Bolts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B8 | ||
| 13 | Gland | 13CR, 316, or 304 | |||||
| 14 | Gland Flange | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M | |
| 15 | Yoke | A 216-WCB | A 352-LCC | A 217-WC6 | A 217-C5 | A 351-CF8M | |
| 16 | Yoke Pad Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 | |
| 17 | Yoke Pad Bolt Nuts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | |
| 18 | Eye Bolt Nutt | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 | |
| 19 | Yoke Sleeve | ASTM A439 Gr. D2C | |||||
| 20 | Grease Nipple | Carbon Steel | |||||
| 21 | Bearing | Carbon Steel | |||||
| 22 | Retaining Nut | Carbon Steel | 316 | ||||
| 23 | Handwheel | Malleable Iron | |||||
| 24 | Screw | Carbon Steel | |||||
| 25 | Handwheel Nut | Carbon Steel | 316 | ||||
| DIMENSIONS AND WEIGHTS | ||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 |
| L (RF) | In | 14.50 | 16.50 | 15.00 | 18.00 | 24.00 | 29.00 | 33.00 | 38.00 | 40.50 |
| L (RF) | Mm | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 |
| L (RTJ) | In | 14.60 | 16.60 | 15.10 | 18.10 | 24.10 | 29.10 | 33.10 | 38.10 | 40.90 |
| L (RTJ) | Mm | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 |
| L (BW) | In | 14.50 | 16.50 | 15.00 | 18.00 | 24.00 | 29.00 | 33.00 | 38.00 | 40.50 |
| L (BW) | Mm | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 |
| ØB | In | 1.90 | 2.20 | 2.90 | 3.90 | 5.70 | 7.50 | 9.40 | 11.10 | 12.20 |
| ØB | Mm | 47 | 57 | 73 | 98 | 146 | 190 | 238 | 282 | 311 |
| H | In | 14.50 | 27.80 | 27.40 | 32.50 | 42.00 | 52.00 | 60.60 | 72.50 | 79.70 |
| H | Mm | 614 | 705 | 656 | 688 | 936 | 1127 | 1437 | 1507 | 2025 |
| W | In | 10 | 12 | 12 | 14 | 20 | 20 | 24 | 28 | GO |
| W | Mm | 250 | 300 | 300 | 350 | 500 | 500 | 600 | 720 | GO |
| WT | KG | 95 | 108 | 125 | 192 | 378 | 635 | 900 | 1550 | 2170 |
| WT | LB | 209.4 | 238.1 | 275.6 | 423.3 | 833.3 | 1399.9 | 1984.1 | 3417.1 | 4784.0 |
