Standards:
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5, 26” ≥ MSS SP-44, or API 605
Basic Design: API 600, API 603 (316 Valves)
Test Standard: API 598

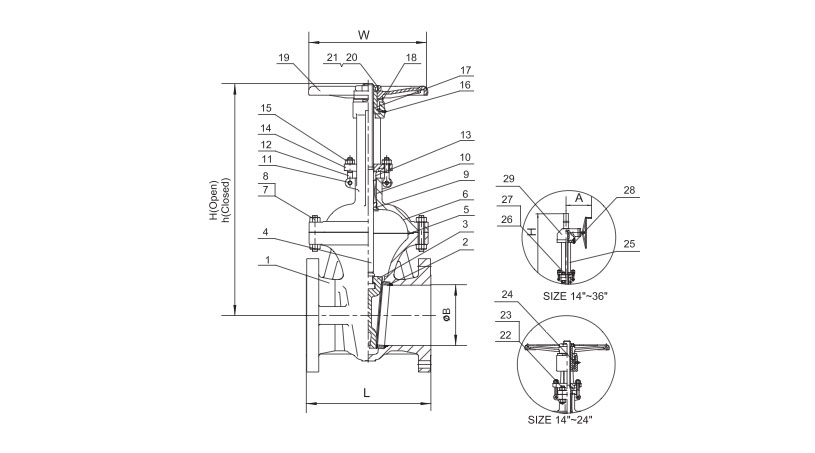

| MATERIAL LIST | ||||||
| NO. | Part Name | ASTM Specification (Specs – Grades/Types) | ||||
| NO. | Part Name | A 216 | A 352 | A 217 | A 351 | |
| WCB | LCC | WC6 | C5 | CF8M | ||
| 1 | Body | A 216-WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M |
| 2 | Seat Ring | A 105, LF2, 316, or 304 | ||||
| 2 | Seat Ring Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||
| 3 | Gate | A 216 – WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M |
| 3 | Gate Seating Surface | 13CR, HF (CoCr-A), 316, 304, or Monel | ||||
| 4 | Stem | 13CR, 316, 304, 17-4PH, or Monel | ||||
| 5 | Gasket | Graphite Jacketed Stainless Steel | ||||
| 6 | Bonnet | A 216 – WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M |
| 7 | Bonnet Bolt Nut | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 8 | Bonnet Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 |
| 9 | Bonnet Bushing | 13CR, 316, or 304 | ||||
| 10 | Packing | Braided Graphite & Die Formed Graphite Ring | ||||
| 11 | Eye Bolt Pins | Carbon Steel | A 276 Type 316 | |||
| 12 | Gland Eye Bolts | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B8 | |
| 13 | Gland | 13CR, 316, or 304 | ||||
| 14 | Gland Flange | A 216 – WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M |
| 15 | Eye Bolt Nut | A 194-2H | A 194-7 | A 194-2H | A 194-8 | |
| 16 | Grease Nipple | Carbon Steel | A 276 Type 316 | |||
| 17 | Yoke Sleeve | A 439 Gr. D2C | ||||
| 18 | Retaining Nut | Carbon Steel | A 276 Type 316 | |||
| 19 | Handwheel | Malleable Iron | ||||
| 20 | Handwheel Nut | Carbon Steel | A 276 Type 316 | |||
| 21 | Screw | Carbon Steel | ||||
| 22 | Yoke Pad Bolts | A 193-B7 | A 276 Type 316 | |||
| 23 | Yoke Pad Bolt Nuts | A 194-2H | A 276 Type 316 | |||
| 24 | Bearing | Carbon Steel | ||||
| 25 | Yoke | A 216 – WCB | A 352-LCC | A217-WC6 | A 217-C5 | A 351-CF8M |
| 26 | Yoke Pad Bolt | A 193-B7 | A 320-L7 | A 193-B7 | A 193-B16 | A 193-B8 |
| 27 | Yoke Pad Bolt Nuts | A 194-2H | A 194-4 | A 194-2H | A 194-4 | A 194-8 |
| 28 | Stud | Carbon Steel | ||||
| 29 | Gear | Carbon Steel | ||||
| DIMENSIONS AND WEIGHTS | ||||||||||||||||||
| Size | NPS | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 |
| L (RF) | In | 8.50 | 9.50 | 11.12 | 12.00 | 15.00 | 15.88 | 16.50 | 18.00 | 19.75 | 30.00 | 33.00 | 36.00 | 39.00 | 45.00 | 49.00 | 53.00 | 55.00 |
| L (RF) | Mm | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1244 | 1346 | 1397 |
| L (RTJ) | In | 9.12 | 10.12 | 11.75 | 12.62 | 15.62 | 16.50 | 17.12 | 18.62 | 20.37 | 30.62 | 33.62 | 36.62 | 39.75 | 45.88 | 49.88 | 53.88 | 56.00 |
| L (RTJ) | Mm | 232 | 257 | 298 | 321 | 397 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 | 1266 | 1368 | 1422 |
| L (BW) | In | 8.50 | 9.50 | 11.12 | 12.00 | 15.00 | 15.88 | 16.50 | 18.00 | 19.75 | 30.00 | 33.00 | 36.00 | 39.00 | 45.00 | 49.00 | 53.00 | 55.00 |
| L (BW) | Mm | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1244 | 1346 | 1397 |
| A | In | 9.45 | 9.45 | 14.17 | 14.17 | 14.17 | 16.18 | 16.18 | 23.62 | 23.62 | 23.62 | |||||||
| A | Mm | 240.0 | 240.0 | 360.0 | 360.0 | 360.0 | 411.0 | 411.0 | 600.0 | 600.0 | 600.0 | |||||||
| ØB | In | 2 | 3 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 13 | 15 | 17 | 19 | 23 | 25 | 27 | 29 |
| ØB | Mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 | 254 | 305 | 337 | 387 | 483 | 489 | 591 | 641 | 692 | 743 |
| H | In | 16.70 | 18.10 | 21.00 | 24.20 | 26.10 | 31.30 | 39.90 | 48.50 | 57.00 | 64.80 | 72.50 | 76.50 | 84.80 | 100.50 | 108.30 | 122.10 | 130.70 |
| H | Mm | 424 | 460 | 535 | 615 | 662 | 795 | 1012 | 1231 | 1450 | 1645 | 1841 | 1943 | 2154 | 2553 | 2750 | 3100 | 3320 |
| W | In | 8 | 10 | 10 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 25 | 28 | 28 | 28* | 35* | 35* |
| W | Mm | 200 | 250 | 250 | 250 | 300 | 350 | 400 | 450 | 500 | 560 | 640 | 640 | 720 | 720 | 720* | 900* | 900* |
| WT | KG | 24 | 44 | 52 | 76 | 94 | 146 | 218 | 352 | 472 | 694 | 1080 | 1235 | 1655 | 2320 | 3100 | 3893.0 | 4930.0 |
| WT | LB | 52.9 | 97.00 | 114.6 | 167.5 | 207.2 | 321.9 | 480.6 | 776.0 | 1040.6 | 1530.0 | 2381.0 | 2722.7 | 3648.6 | 5114.7 | 6834.3 | 8582.5 | 10868.7 |
*GEAR OPERATOR RECOMMENDED
